Full Automatic 2 Color Latex Balloon Screen Printing Machine

  • Model number:GW-BL-B
  • Printing area:150*150mm
  • Printing speed:1200PCS/Hr
  • Machine size:1650x1600x1500mm
  • MOQ:1set
  • Payment terms:T/T,Paypal,Western Union,L/C
  • Package way:plywood
  • Delivery way:by ocean
  • Lead time:within 30 workdays

2 color automatic silk screen latex balloon printing machine

Products Description
Application:
This kind screen printing machine is specially designed for printing the balloons,it can complete 2 colors printing at one time.Easy to install and operate,and the max.printing speed can be up to 1200PCS/Hr
Printing balloon diameter
200-220mm
Printing area
150*150mm
Printing speed
1200pcs /hour
Air pressure
6-8 Bar
Voltage
220V 50HZ Single phase
Power
1.5KW
Dimension
1800*1500*1550mm
Main function:
1. Automatic blowing function with non balloon non-blowing function 2. Automatic printing head with non balloon non-printing function 3. Automatic unloading with non balloon non-unloading 4. Air blowing pressure independent control, air pressure adjustable 5. Balloon automatic rotation with non balloon non-rotation, can print 2 side of balloon 6. With automatic hot air blowing function can dry ink faster 7. Turntable adopt serve motor and precision speed reducer control, Run smoothly and speed fast adjustable 8. Balloon rotation adopt Unique vacuum device Combined fast rotating electric motor, rotation speed adjustable 9. Machine every actions can be control independently, Convenient debugging machine
Details Images

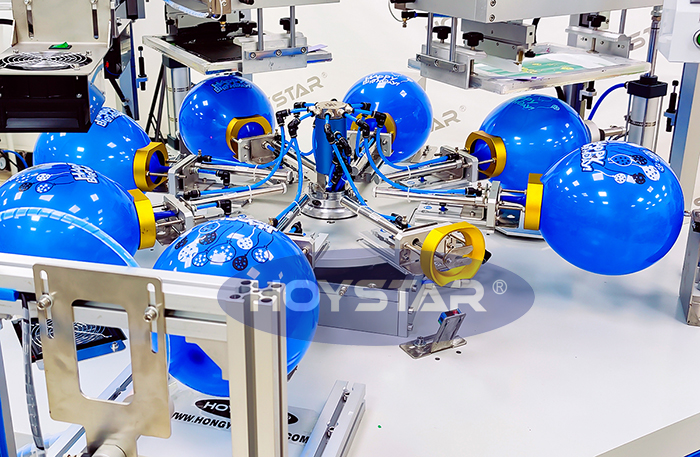

Rotary worktable,with 8 pcs of workstation
Automatic blowing function

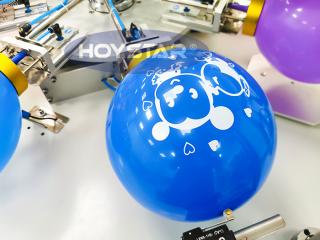

With balloon automatic rotation function

With 2 printing function that 2 color 1 side or 1 color double side
With no balloon non printing function
With hot air drying system on the machine
Automatic unloading device
