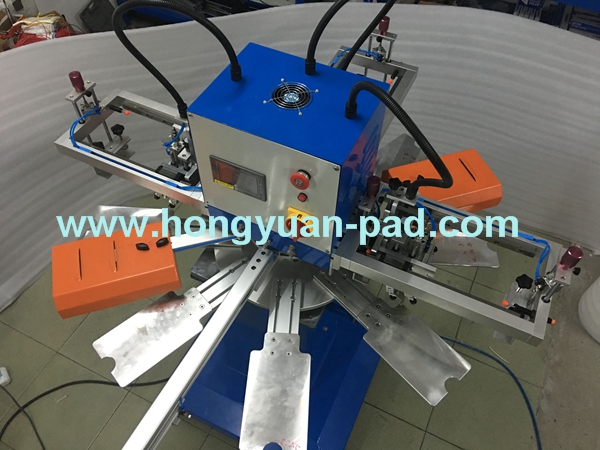

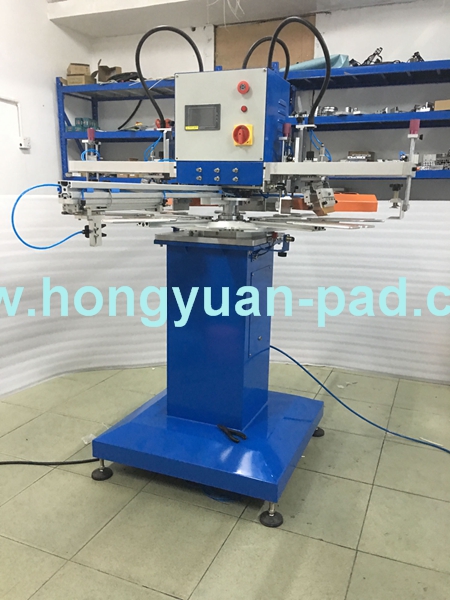

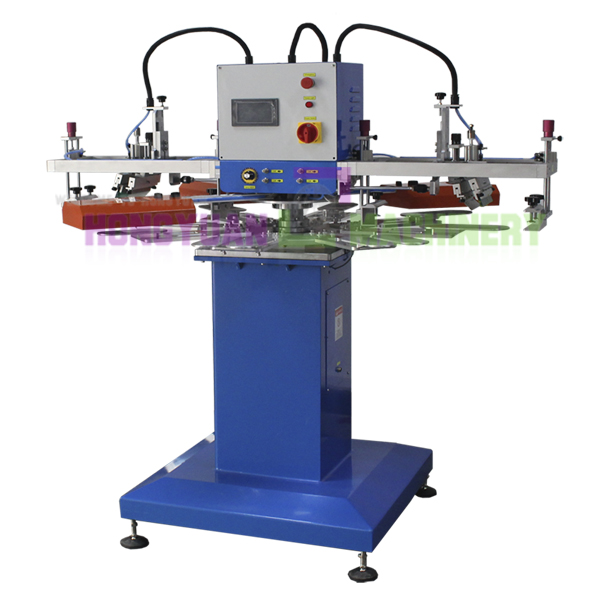

3-color rapid garment tagless screen printing machine

  • Model number:GW-300TRS
  • Printing area:130*100mm
  • Printing speed:1500PCS/H
  • Machine size:1350*1350*1550mm
  • Gross weight:250KG
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal
  • Package way:plywood
  • Delivery way:By sea
  • Lead time:within 15 workdays
  • Worktable size:130*230mm

3-color rapid garment tagless screen printing machine


Application:

high rapid tagless/label screen printer in textile industry,the speed can be up to 2000PCS/Hr,like this,it increase production output largely.it is suitable for printing garment tagless or label,rotary wortable,very convenient to load or unload products,lots of customers like it very much because of high quality and low price

Configuration instructions:
1.Machine control part adopts MITSUBISHI PLC controller,Touch screen control,easy to operate
2. Three printing model to choose,manual/semi-auto/full-auto,printing Interval time is numerical control
3. The rotate worktable adopts electric controll,CHINT AC contactor, Taiwan FOTEK photoswitch
4. Drying system lamp brightness can be adjusted,like this,it can meet different temperatures needing
5. Hihg quality infrared lamps,it can be up to 1500-2000 hours
6. It has “No product,No print" function,you can open and stop machine freely during printing,Product sensors can be 360 degrees adjustable
7. It has total 8 pcs of work station,3 pcs of printing work stations,3 pcs of drying systems and 2 pcs of load/discharging work stations
8. The 3 printing head can be controlled independently
9. Pneumatic components control adopts Taiwan brand,front and back printing precision linear Guide rails using Taiwan brand.
10.Machine surface is metallic paint ,beautiful and dignified
Technical parameter:
1. Printing area:130*100mm
2. Frame size:360*250mm
3. Machine size:1350*1350*1550mm
4. Printing speed:1500PCS/H
5. work station:8PCS
6. Drying system:3PCS

7. Machine weight:250KG
