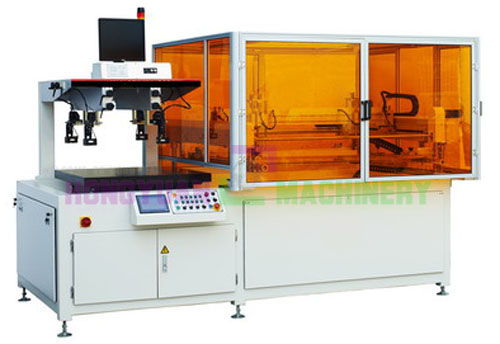

Automatic image position optical glass screen printing machine(GW-JM-SZJ)

  • Model number:GW-JM-SZJ
  • Printing area:60*60mm
  • Printing speed:500P/H
  • Machine size:2900L×1500W×2100H mm
  • Gross weight:2300kg
  • MOQ:1
  • Payment terms:T/T
  • Package way:Wood
  • Delivery way:By sea
  • Lead time:30 day
  • Worktable size:750×750mm

Automatic image position optical glass screen printing machine

Application:

it is suitable for printing mobile window glass, touch protective glass, single-chip touch-screen (OGS) processes etc.

Features:

1. Four-post lift structure, chain and screw is optional.

2. it has compensation function if screen frame position is deflection,

3. Automatic constant-pressure and with automatic compensation function (0-6mpa)

4. Repeatable printing setting method: 1-9 repeat printing

5. screen frame locking automatically device, back: two-point pneumatic clamp, front: two-point pneumatic locking plate, two-point manual lock plates

6. Data operation function setting

7.screen frame operation panel is colorful , Human-machine interface + simple button, and adopts simple schematic signal, quantitative setting, to meet personalized, data-based, standardized job requirements

8. CCD position systems, adopts Japan advanced performance software , position is fast and precise

9.Equipped with automatic fault detection system,emergency stop buttons, safety reposition, safety grating, tri-color lights, safety doors and other protective devices

10. Screen frame quickly locate structure (when screen frame is fixed size)

11. Fault display,  human-computer interface display fault status

Technical parameter:

Model number

6060/CCD

7575/CCD

Max.printing area

600×600mm

750×750mm

Max.printing frame

1100×1100mm

1250×1250mm

Worktable size

750×750mm

900×900mm

Printing speed

500P/H

500P/H

CCDposition precise

±0.005mm

±0.005mm

Print repeat presice

±0.01mm

±0.01mm

Air pressure

0.5-0.6mpa

0.5-0.6mpa

Power

380V/3KW/3P

380V/3KW/3P

Machine size

2900L×1500W×2100H mm

3100L×1700W×1900H mm
