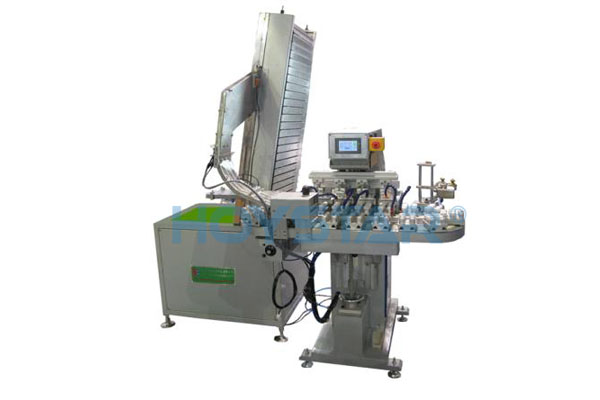

Automatic Plastic Bottle Caps Pad Printing Machine(GW-M4/ST)

  • Model number:GW-M4/ST
  • Printing area:40*40 mm
  • Printing speed:5000-8000pcs/hr
  • MOQ:1 set
  • Payment terms:T/T,Paypal,Western Union,L/C
  • Package way:plywood
  • Delivery way:by sea
  • Lead time:within 10days

Bottle cap bottle lip automatic cap pad printer


Application:
The automatic four color cap printing machine is special produced for large cap manufacturers. No need person to operation it, it can feeding, printing, baiting automatically. Printing four color at one time. It can print six caps at the same time. The speed can be up to 5000~8000PCS/hr. It's the best choice for the cap manufacturers.
Function:
1.PCL+Touch screen control
2. Auto 5-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. The distance of scratching ink is adjustable
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11.when there is no pressure air into ,it has prohibition of plastic head Down  function
12.The machine is running fastly,it is steady and low voice
13.With hot air system
14.automatic loading and unloading system
15.with automatic pad cleaning system
16.with flame or Corona per-treatment system
17.Max printing speed: 8000pcs/hr
18.powerL: 220V 50-60Mhz
19.Printing workstation: 16 pieces
Printing Samples:
