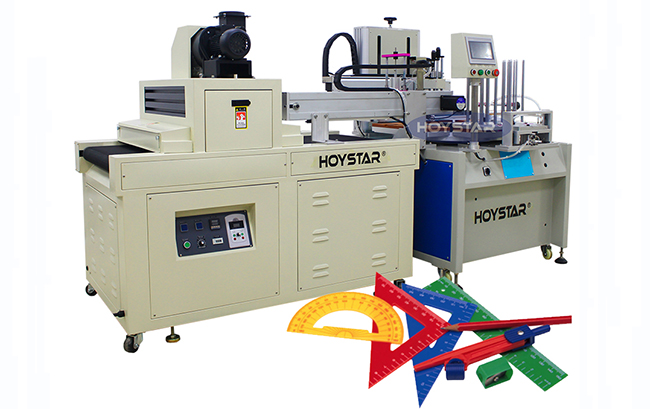

Automatic Screen Printing Machine For Rulers(GW-2030-R2)

  • Model number:GW-2030-R2
  • Printing area:200*300mm
  • Printing speed:2500PCS/Hr
  • Machine size: 1500*1150*1450mm
  • Gross weight:200kgs
  • MOQ:1 set
  • Payment terms:T/T,Paypal,or West union
  • Package way:plywood
  • Delivery way:by sea
  • Lead time:within 10 workdays
  • Worktable size:250*450mm

Automatic Stationery Ruler ,Protractor , Triangle ruler Screen Printing Machine

Application:

This kind machine is high precision rulers screen printing machine,with high speed rotary worktable, can run in high speed without any vibrations.Manual feeding,auto discharding,During printing process,you can put or take off the products,reduce machine down time.Max.printing speed can be up to 2500PCS/Hr- 5000PCS/Hr,mainly applied to printing rulers, equilateral triangles rulers, Delta rulers, Protractor etc stationery products in large quantities

Function:

1.Speed cam splitter architecture rotary wortkable

2.Adopts Taiwan LSK linear Guide, assure the machine with high precision

3.Worktable can be adjusted slightly, you can adjust on X.Y direction

4.High strength large capacity vacuum tube adsorption

5.Various stationery rules does not require making jigs, quick change

6. No product,no print

7.Manual loading,automatic discharging,UV drying system

8. LCD control panel, multiple print mode selection, operation is simple and convenient

9. Full-cast aluminum body, metallic paint

9. Left and right stroke can be adjustable,Taiwan Photoelectric switch limit

10.Squeegee/blade angle can be adjusted freely

11. Screen frame position can be adjusted front and back ,left and right,up and down

12. Up and down,Left and right are equipped with Taiwan CEC oil buffer to eliminate printing vibrations

13. The whole machine runs fastly, smooth, noiseless

Technical parameter:

Max.printing area:200*300mm

Max.printing speed: 2500PCS/Hr- 5000PCS/Hr

Worktable size:250*450mm

Max.frame size:300*500mm

Left and right stroke:350mm

Up and down stroke:100mm

Disc size: 600mm

Workpiece max.height: 50mm

Power:220V 50-60Hz

Machine size: 1500*1150*1450MM

UV Machine size: 1500*900*1550MM

Machine Weight: 550kgs



Products Description
Automatic Ruler Screen Printing Machine

Application:
This kind machine is high precision rulers screen printing machine,with high speed rotary worktable, can run in high speed without any vibrations.Manual feeding,auto discharding,During printing process,you can put or take off the products,reduce machine down time.Max.printing speed can be up to 2500PCS/Hr- 5000PCS/Hr,mainly applied to printing rulers, equilateral triangles rulers, Delta rulers, Protractor etc stationery products in large quantities

Features:

1) Fully automatic, no need person to operate

2) Locating automatically to keep printing precision

3) No product without printing system, keep printing stable

4) High and strong vacuum system, keep printing precision

5) Come equipped with UV curing machine

6) PLC and touch screen control system. Digital control system,can set parameter randomly, easy to operate

7) The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even

8) Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly

9) With emergency switch to keep safe and stable 10) Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency

Stationery Ruler Screen Printing Machine

Technical Parameter:
1) Max.printing area: 200*300mm
2) Max.printing speed: 2500PCS/Hr- 5000PCS/Hr
3) Worktable size: 250*450mm
4) Max.frame size: 300*500mm
5) Left and right stroke: 350mm
6) Up and down stroke: 100mm
7) Disc size: 600mm
8) Workpiece max.height: 50mm
Details Images
automatic ruler screen printer

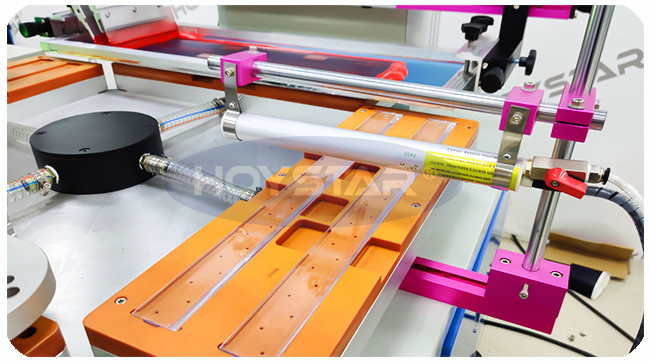

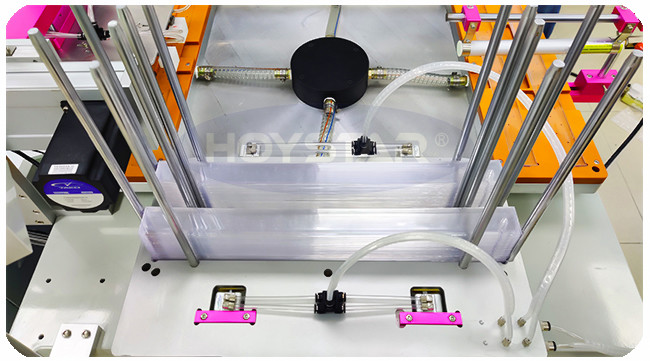

Automatic loading part---For 50cm ruler


automatic screen printer for stationery ruler

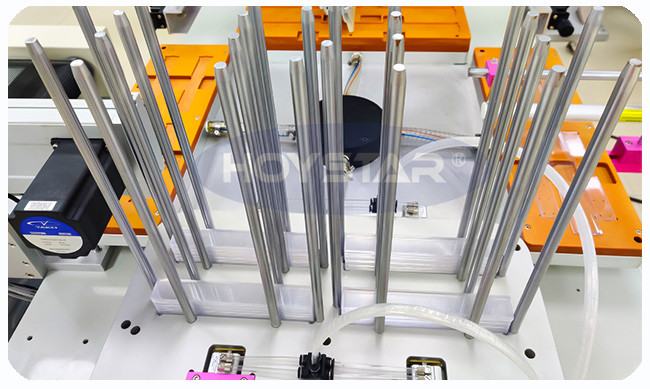

Automatic loading part---For 20cm ruler


automatic screen printer for stationery ruler

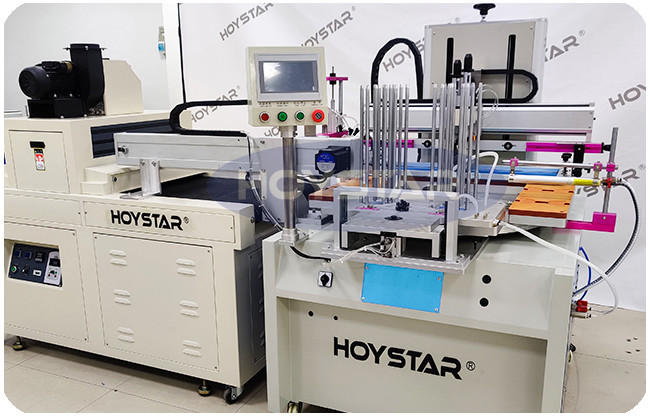

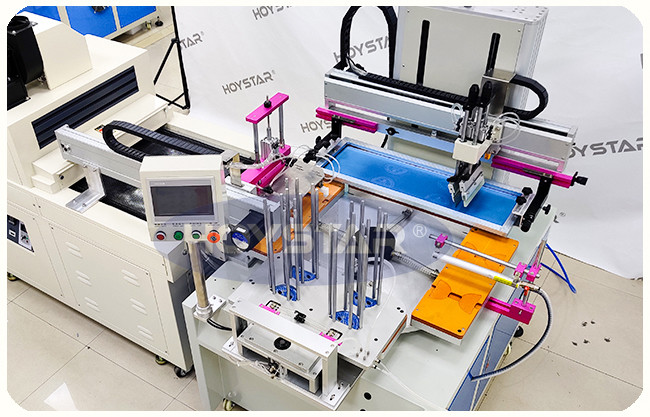

PLC control panel,easy to operate, with stable printing, good printing quality and high speed.
Printing process:auto loading--auto printing-- auto unloading--UV curing(Full automatic type)
automatic screen printer for stationery ruler

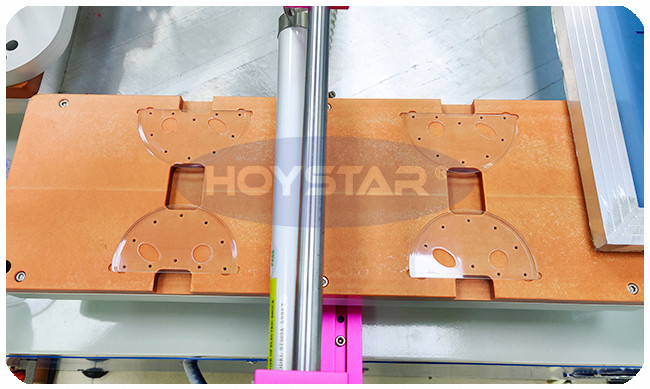

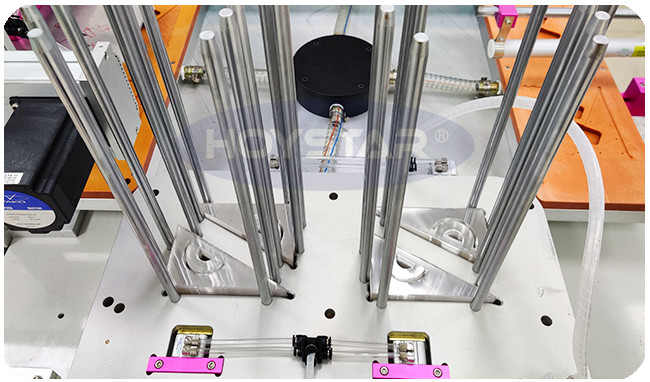

Fixed clamp---For Triangle ruler

High Speed Auto Ruler Printing Machine

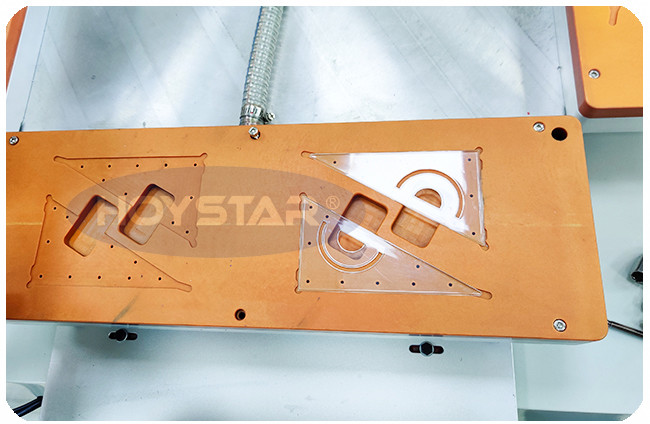

Fixed clamp---For Triangle ruler

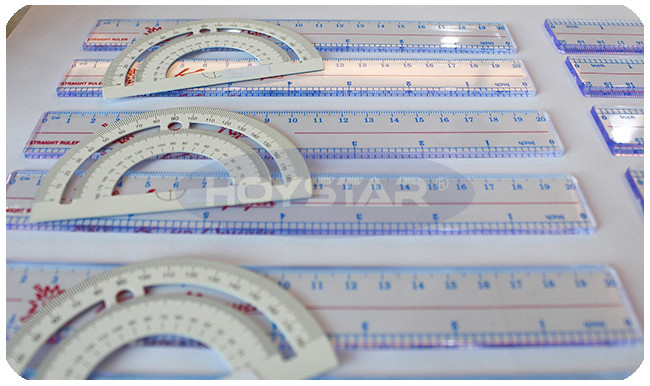

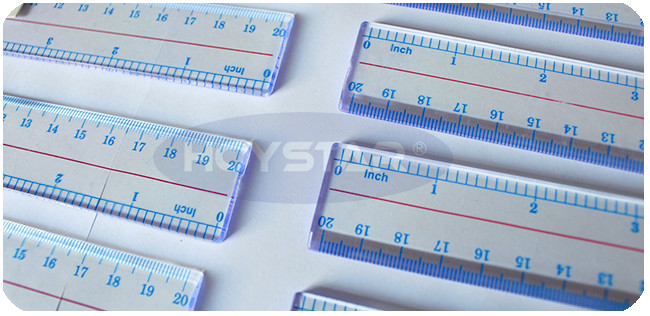

Samples
Stationery ruler printing machine
Stationery ruler printing machine


The machine detail :

Ruler Screen Printing Machine

Automatic Ruler Screen Printing Machine

High Speed Auto Ruler Printing Machine

 Stationery Ruler Screen Printing Machine

Automatic screen printer for stationery ruler

Automatic screen printer for stationery ruler

Ruler UV Screen Printing Machine

Ruler Set Stationery Printing Machine

             Automatic screen printer for stationery ruler
                   Stationery Ruler Screen Printing Machine
