Automatic 2 Color Screen Printer For Can Coolers(GW-200TRS-C)

  • Model number:GW-200TRS-C
  • Printing area:130*100mm
  • Printing speed:1200PCS/Hr
  • Machine size:1350*1450*1600mm
  • Gross weight:210kgs
  • MOQ:1set
  • Payment terms:T/T,Western Union
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 15 workdays

 Knitted Technics and Adults Age Group screen printing machine for socks and gloves

Application:

this high rapid tagless/label screen printing machine is specially designed for printing can coolers,koozies.automatic screen printing machine,its printing process like below

load the koozies on the machine by hand---auto printing--auto drying--180degree ratory--then print another side--auto drying--auto unloading

easy to operate and low price

Function:

1.PLC controlled,user friendly interface,clear function display and easy operation

2.Flat screen printing with infrared drying system.Suitable for different types of ink and small area screen frame printing such as koozies

3.Eeight station driven by step motor to insure stable and smooth running

4.Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure

5.Adopts 8 stations rotary worktable,one for substrate loading and one for printing,two for drying and one for substrate unloading and five stations working simultaneously

6.With one cycle and auto function and switch easy.

Technical parameter:

1.Max.printing area:130*100mm

2.Printing speed: 1200PCS/Hr

3.Power:2.5KW

4.Machine size:1350*1450*1600mm

5.Weight: 210kgs

6.Workstaion: 8 pieces

7.Drying system: 2 pieces

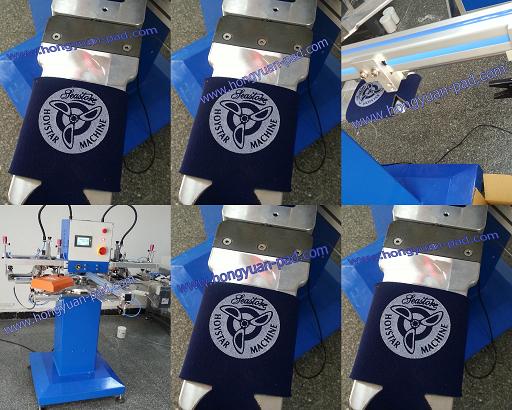

Printing samples:

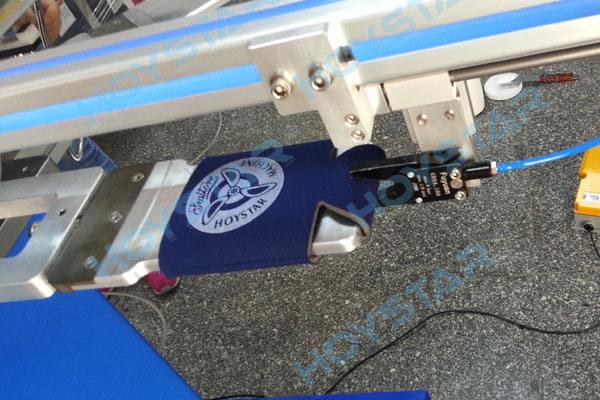

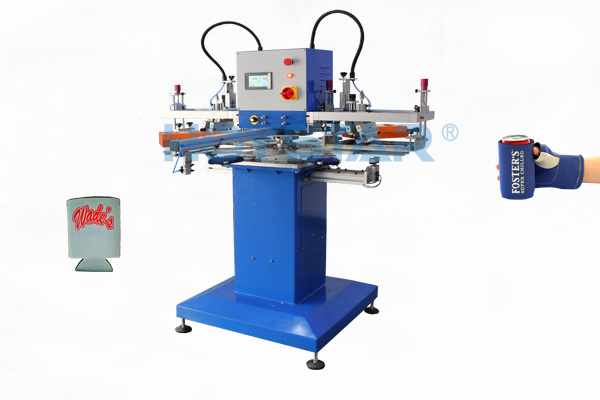

Machine pictures:
