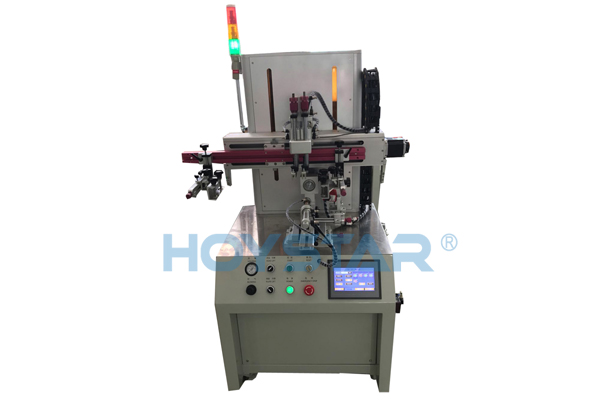

CNC Cylindrical Screen Printer with Automatic Registration for Bottles

  • Model number:GW-2A-CNC
  • Printing speed:1200PCS/HR
  • MOQ:1 unit
  • Payment terms:T/T
  • Package way:plywood case
  • Delivery way:By Ocean
  • Lead time:within 15 workdays after your order confirmation and your deposit

Application:

this screen printing machine is a medium size curved screen printer, it can print kinds of products which surface is round,such as bottles,plastic tubes,cups etc. It print fastly with steady quality and lower voice. it is with color-registration eye,so it can do color-registration easily and high precise . It is suitable for printing cosmetics, containers, food packages and other curved products surface

Function:

1.mainly produce by Optoocular counterposition system/optical sensor, it is from German brand

2.PLC control system,servo motor.so that these feature will make color register more precision.

3.it can print hard bottle or soft tube.These bottle can color register without fixed point of bottle bottom.

4.with air injection function,like this,it can print the products which material is soft

5. it is with color-registration eye,so it can do color-registration easily and high precise

6.Accuracy or tolerance of the registry is 0.05mm.

Technical parameter:

1.Max.printing speed:1200PCS/Hr
2.Power:220V
3.Air pressure:5-7bar
4.max.printing area: 260 MM (the length of circumference and cambered surface) * 200MM (width)
5.Max printing diameter : ¢85 MM
6.Max length of products: 250 MM
7.With CNC color -registration system


Products Description :
CNC Cylindrical Screen Printer
Application:
This screen printing machine is a medium size curved screen printer, it can print kinds of products which surface is round,such as bottles,plastic tubes,cups etc. It print fastly with steady quality and lower voice. it is with color-registration eye,so it can do color-registration easily and high precise . It is suitable for printing cosmetics, containers, food packages and other curved products surface.
CNC Cylindrical Screen Printer
Function:
1. Mainly produce by Optoocular counterposition system/optical sensor, it is from German brand 2. PLC control system,servo motor.so that these feature will make color register more precision. 3. It can print hard bottle or soft tube.These bottle can color register without fixed point of bottle bottom. 4. With air injection function,like this,it can print the products which material is soft 5. It is with color-registration eye,so it can do color-registration easily and high precise 6. Accuracy or tolerance of the registry is 0.05mm.
Details Images



Cylindrical Screen Printing Machine


Technical parameter:

1. Max.printing speed: 1200PCS/Hr

2. Power: 220V

3. Air pressure: 5-7bar

4. Max.printing area: 260mm (the length of circumference and cambered surface) * 200mm (width)

5. Max printing diameter :¢85mm

6. Max length of products: 250mm

7. With CNC color -registration system




Cylindrical Screen Printing Machine
with color-registration eye
Whether there is a positioning point/location point /Anchor point at the bottom of the product, it can be overprinted
Cylindrical Screen Printing Machine

screen frame with pattern

We can help you to make it !(It can be customized)
Cylindrical Screen Printing Machine

printing sample

Cylindrical Screen Printing Machine
We can make the screen frame with pattern according to your design drawing
( we can also help you make adjustments of the design when make the screen frame if you needed )
Samples
--Suitable for printing kinds of bottles(Thermos, paper cup, plastic cup etc).
--It can automatically locate and overprinted
--Even white transparent bottles can be overprinted !!
