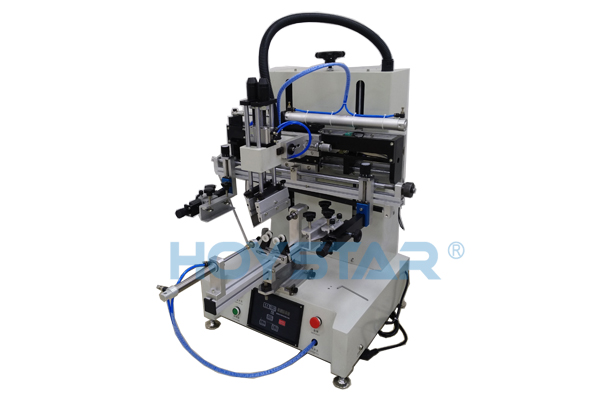

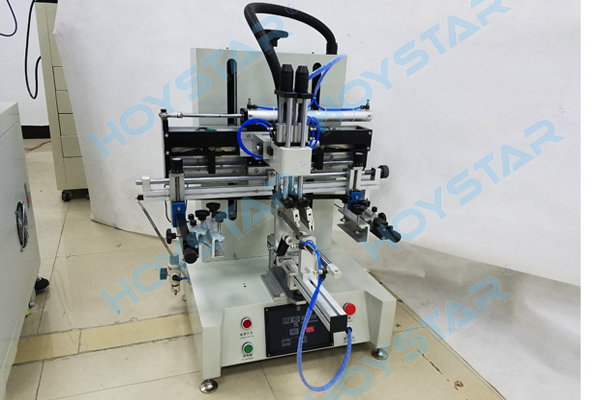

(GW-2030C)Desktop Curved Screen Printing Machine

  • Model number:GW-2030C
  • Printing speed:800PCS/Hr
  • Gross weight:110kgs
  • MOQ:1 set
  • Payment terms:T/T,Western Union
  • Package way:plywood
  • Delivery way:by ocean
  • Lead time:within 10 workdays

Application:

It is suitable for printing products which surface is round,such as Bottles, pens, glass cups etc

Print area: 5~95mm diameter

Print speed: 800PCS/hr

Specification:
1. Micro-computer controlling, high degree of automation, easy and convenient operation
2. Auto 4-digit counters built-in
3. It can print round and cone products
4. In order to meet kinds of printing requirements, the printing stroke and speed can be adjusted
5. The worktable can be fine-tuning by up and down, or left and right, and flat oscillate angle, high precise printing, conveniently and quickly to adjust
6. Pneumatic printing controlling with adjustable pressure system
7. Stable and reliable function micro-computer controlling
8. Unaided printing and ink reclaiming speed controlled
9. With huffing function, can print soft products
10. Separate special mould for round and cone products
11. Action mode option: Fully-automatic semi-automatic manual
12. Start-up method: Panel pedal
13. Drive method: Pneumatic
14. Left and right drive method: Pneumatic
15. Vertical stroke: 125mm
16. Transverse stroke: 350mm
17. Max printing area: 300mm (the length of circumference or cambered surface)*200mm (width)
18. Printable diameter: 5~95mm
19. If printing whole circle, the maximum printing diameter is: 95mm
20. The maximum length of printed products: 250mm

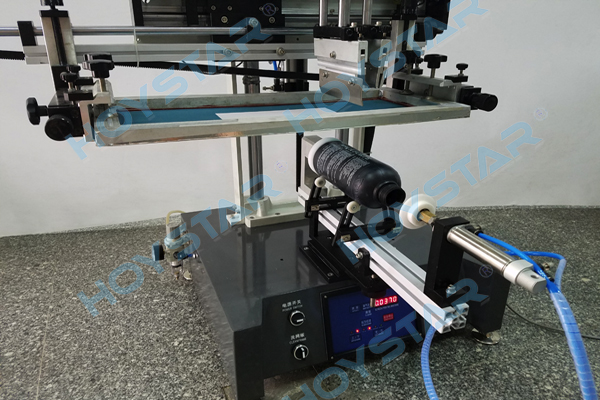

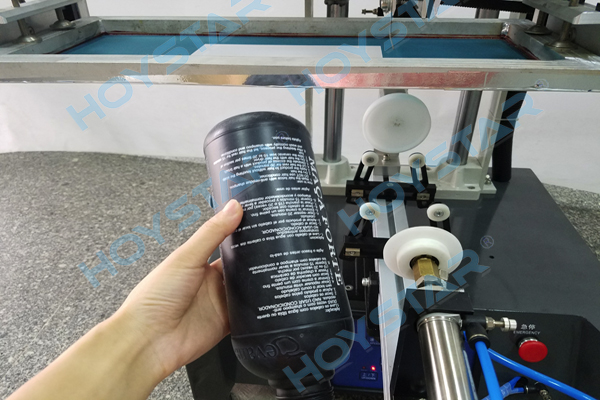

Printing samples
