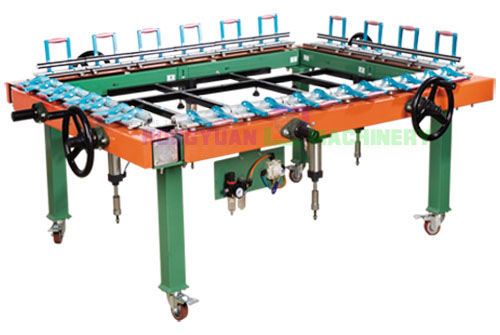

GW-TS-B silk screen stretching machine

  • Model number:GW-TS-B
  • Machine size:1500×1800×800 mm
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 10days

Name: GW-TS-B Silk screen stretching machine

Application

this mesh stretching machine is absorbed the advantage of home and abroad screen stretcher with compact structure, high tension, convenient operation, and perfect profile. It is the most ideal machine for making big-size advertisement screen frame and professional batch screen frame.

Functional characteristics:

1.driving by chain wheel, chain and screw guide, making stretch screen Synchronization

2.lift-up screen synchronous by several cylinders, making screen cloth and screen line non-transferable. It is convenient to stick net.

3.you can contract or expand the size of screen stretchers shelf according to the size of screen cloth and screen frame. It is very convenient to make position.

4.if the screen frame is small, you can streth serveral screen frames at the same time.

5.it has structure with chain tension.

6.orienting, locating by guides in order to make stretch screen parallel move, prevent machine from transferable, protect screw guide.

Technical parameter

Max tighten area 1200×1600mm.

Machine dimension :1500×1800×800 mm.

Min sretcher screen frame size: 500*500mm

Max sretcher screen tension: 35N

Note: we can produce it according to customer's requirement
