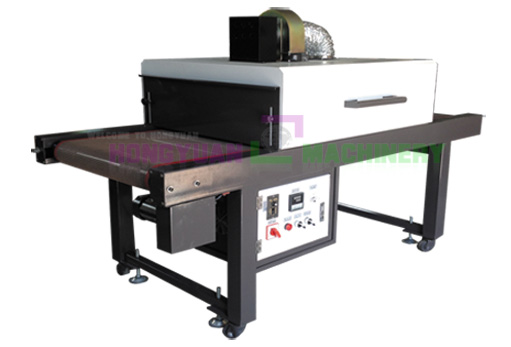

Infrared Tunnel Dryer Machine(GW-700H)

  • Model number:GW-700H
  • Machine size:2000*900*1280mm
  • Gross weight:330KG
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:by wooden box
  • Delivery way:by sea/air/express
  • Lead time:Within 3-7workdays after get client's deposit

Clothes dryer machine for screen printing

Application:

It widely used to dry t-shirt,garment, clothes,advertising, plastic/ aluminum/metal sheet,paper,flag  ,banner,ceramic tile,glass,.....after printed by different  printing ink(such as water based ink,oil based ink,plastic ink...and so on) except uv ink.

Structure:

1.Drying box is totally enclosed,inlet/outlet has shelter door which can be adjust open/closed.effectively shield heating sources leak,like this,it can protect working environment and save energy.
2.Infrared lamps height can be adjusted the distance which is from light sources to conveyor belt.
3.Six Infrared lamps using quanlity can be adjust according to products drying using.
4.Machine with vertical structure can be disassembled desktop/drying parts freely.easy to move and clean.
5.The air volume which the blowers supply can be controlled,there is an air volume control valve on the top of heating area,it can adjust wind supply volume.
6.Machine temperature degree(panel showed to you) can be adjust up/down according to your needs.
7.Machine conveyor belt control by electric motor can adjust slow/fast according to your needs.
8.Machine Inlet/outlet can be adjust height up/down according different products height.

Technical Parameter:

Conveyor belt width: 700mm
Hot heat drying area:900*1150mm
Conveyor belt material:Teflon
Conveyor belt speed:1-10M/mitues
Infrared Lamps:6 pcs*800W
Hot air recycle system power:250W
Electric motor power: 120W
Temperature: 0-180 degree

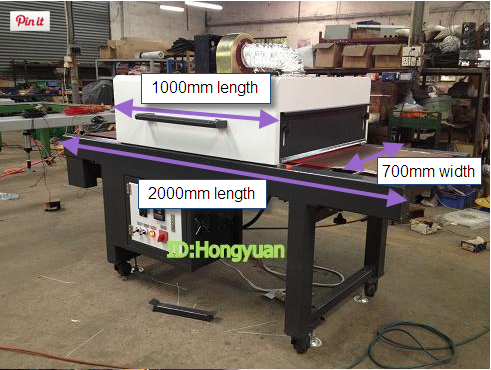

Machine size: 2000*900*1280mm

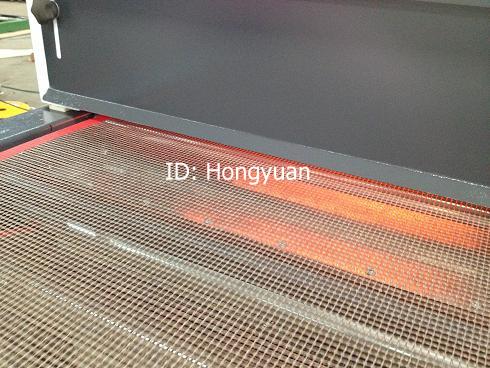

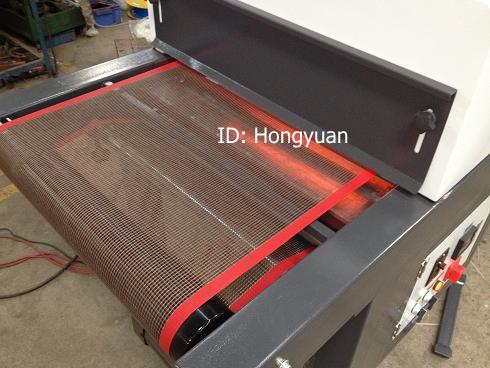

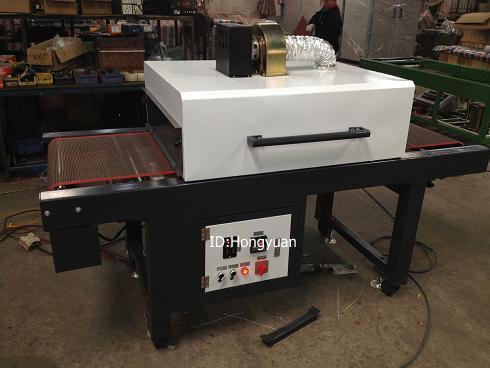

Real pictures:

screen printing t shirt ir dryer
