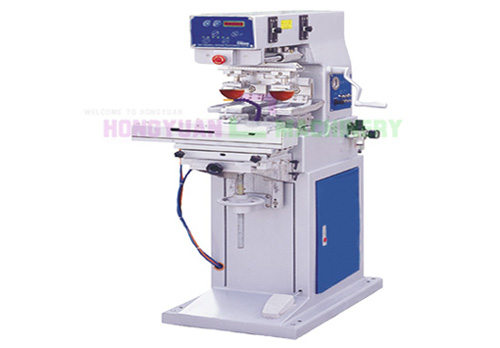

big format 2 color pad printer for lighter(GW-M2/S)

  • Model number:GW-M2S
  • Printing area:80*160MM
  • Printing speed:1500 pieces per hour
  • Machine size:1000*650*1500MM
  • Gross weight:195KGS
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7days

Application

The pad printing machine is for big size workpiece,automatic color registration,two time printing can complete one printing circle,so efficiency is low but easy operation, and just need one clamp.Suitable for products:electrical appliances,cups,barrel,stationary,gifts,pen, promotional gift,keychains,ring,lighter, toy car, and so on

Function

1. Professional manufacturing experience,the produce are update and improve constantly,quality is excellence
2. Printing speed and environmental quiet is the first-class in the same line,and other design performance are in a peor-leading position
3. Automatic computer control,flexible and reliable procedure,Adopts Japanese SMC pneumatic and electronic units,and also use harden bearings and defend from famous factory
4. Unique advantage,the head of machine can be adjusted and convenient to replace ink,pads,steel plate and parts,ink tray and printing size.Special design ink cuo and ink tray can use each other.at the same time,the ink up independent base can be adjusted X.Y direction,easy to do color registration,improve produce efficiency
5. All the machine is with security plate and cut emergency power system,meet international safety standard

 Technical parameter

1. Steel plate size:100*200mm
2. Printing color:2 colors
3. Max.printing speed:1200PCS/Hr
4. Frequency:50-60HZ
5. Net weight:200kg
6. Power:110/220v
7. Air pressure:5-7bar
