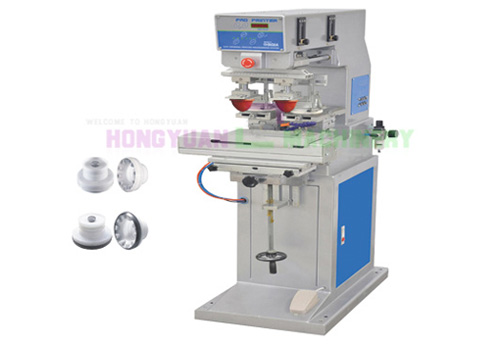

2 Color closed ink cup Pad Printing Machine with shuttle worktable (GW-P2S-CP)

  • Model number:GW-P2S-CP
  • Printing area:80*80mm
  • Printing speed:1000pcs/hour
  • Machine size:720*520*1350mm
  • Gross weight:150KG
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal
  • Package way:by wooden box
  • Delivery way:by sea or by air
  • Lead time:Within 3-7workdays after get client's deposit

2 Color closed ink cup Pad Printing Machine with shuttle worktable (GW-P2S-CP)

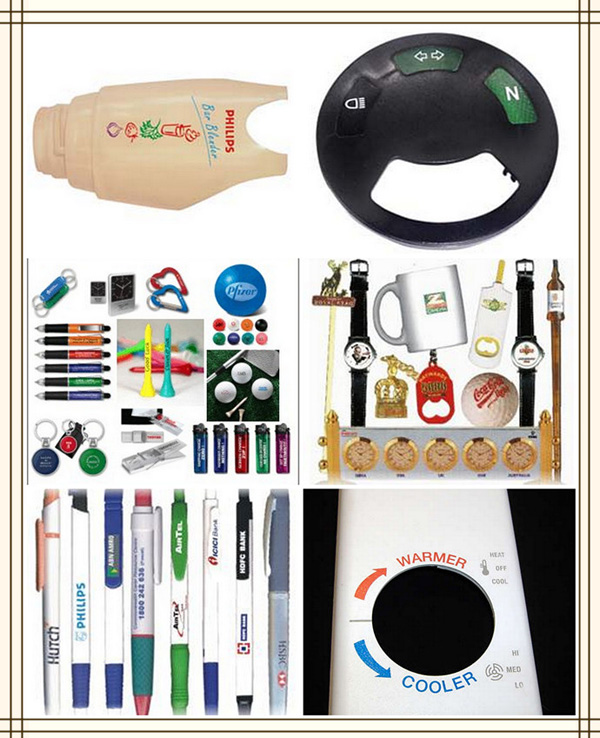

Application:

It is suitable for printing different material irregular shape surface promotional items such as pen,mouse,keyring,toy,trophy,cup,usb,keychain,keyboard,ruler,golf ball,knife,save energy light,bottle date,barrel....etc.


 Technical parameter:

1.Max steel plate size:100*150mm

2.Printing speed:1200pcs/hour

3.Max ink cup diameter:90*90mm

4.Max printing size:80*80mm

5.Power:220V 50HZ

6.Air pressure: 5-7 bar

7.Net weight: 120KG

8.Machine size:720*520*1350mm

9.Package size:870*630*1470mm

Features:

1.SCM IC complile action program,kinds of printing model options
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10.Each adjustable location has scale logo
11.Unique machine body hold-up design,conveniently adjust machine and change steel plate
12.when there is no pressure air into ,it has prohibition of plastic head Down  function
13..The machine is running fastly,it is steady and low voice
14.it can be instead of single color double-head pad printer when shuttle table is not running

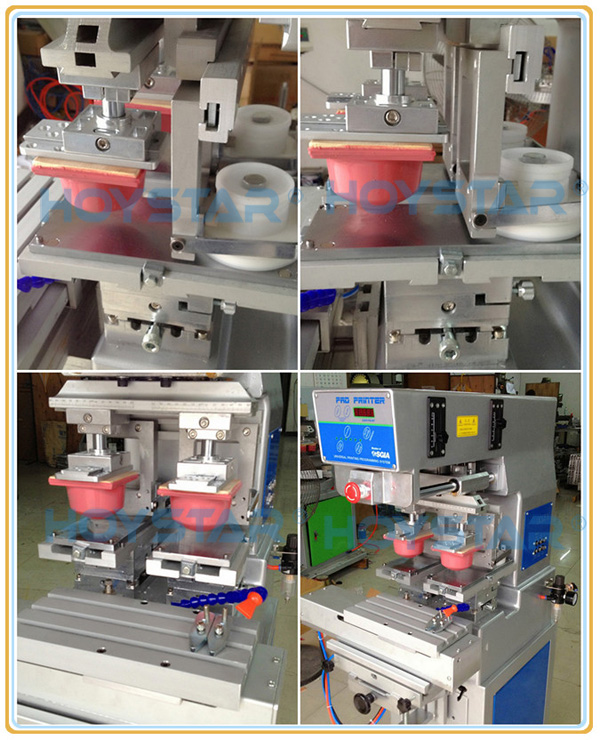

Machine pictures:


 Advantages:

1. High quality SCM program controller and strong metal cover with coating

2. Worktable up/down,let/right, printing silicon pad up/down,left/right turn 360degrees,ink tray left/right,ink blade left/right..etc both can be adjusted by your needs

3. Machine with panel and footswitch control way,easy to operate

4. Vertical structure with cabinet to put other items into,save sapce

5. Machine connect air switch control independently

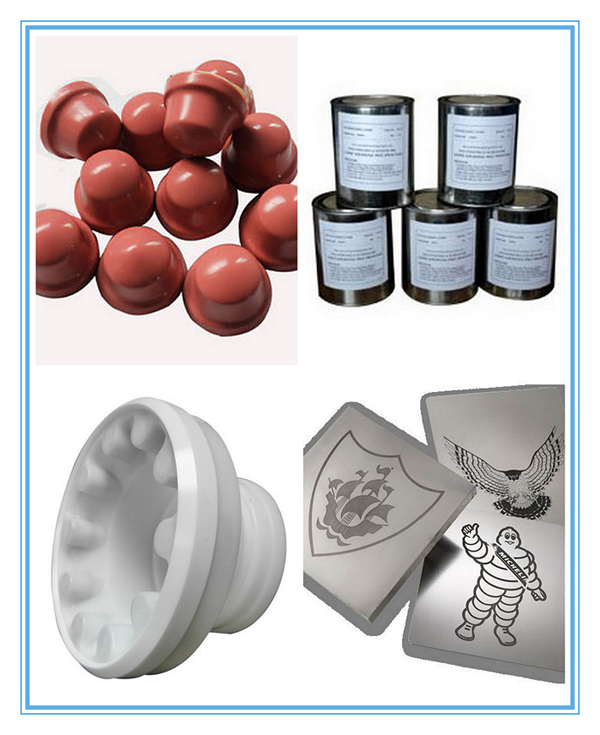

Machine accessories:

silicon pad----2PCS

steel plate---2pcs

ink cups---2sets

adjusting tools---1set

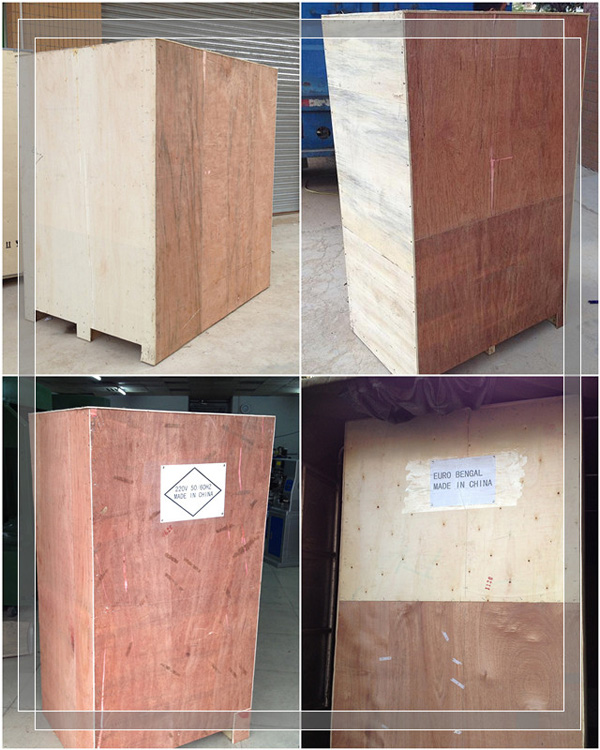

Package way:Plywood box


Delivery way:

By plane,by Ocean,By express,By train(optional)

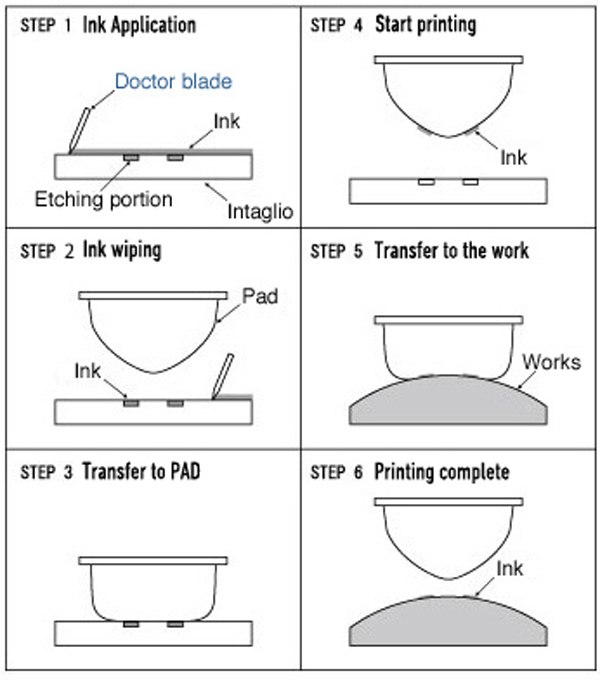

Pad Printing process:
