1 Color Pad Printer For Printing Rulers(GW-RUL-100)

  • Model number:GW-RUL-100
  • Printing area:80*1100MM
  • Printing speed:500PCS/Hr
  • Gross weight:250kgs
  • MOQ:1set
  • Payment terms:T/T or Western Union or Paypal
  • Package way:Plywood
  • Lead time:within 15 workdays

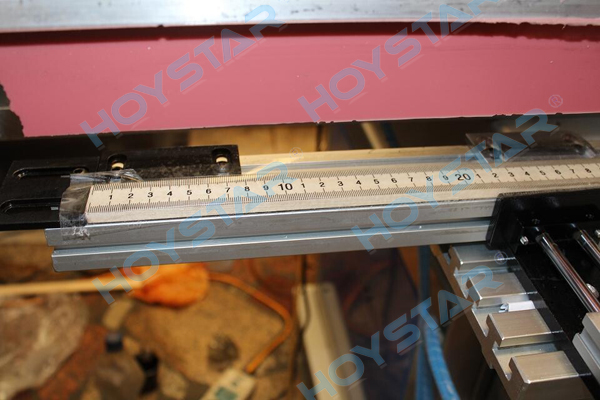

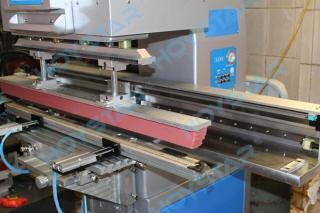

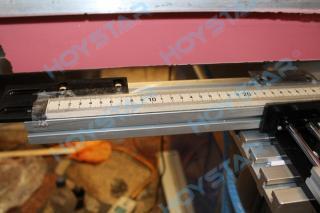

1 Meter Steel Ruler Pad Printing Machine 1 Color Tampon Printing Machine


The ruler pad printer is special design for printing ruler with 1m length. It's adopted transverse ink cup system, double printing cylindrical to make sure enough pressure

1. Compile programming by IC, easy to operate;
2. Pad printing with single color, perfect printing quality;
3. Stable function, printing speed: 500times / hr;
4. Suitable ruler length: Within 100CM;

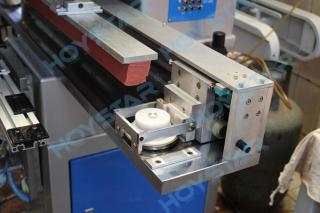

5. Sealed ink cup system, more environmental;
6. Locating by keeping one side with big vacuum function;
7. Using SMC (Japan) and Taiwan pneumatic parts;
8. The X and Y of printing pad can be adjusted;

9. It's suitable for printing kinds of aluminum ruler, plastic ruler, wooden ruler within 100CM.

Technical parameter:

Steel plate size: 100*1200mm
Ink cup diameter: 90mm
Printing speed: 500PCS/hr
Power:110V or 220V(optional)
Air pressure: 5-7bar
