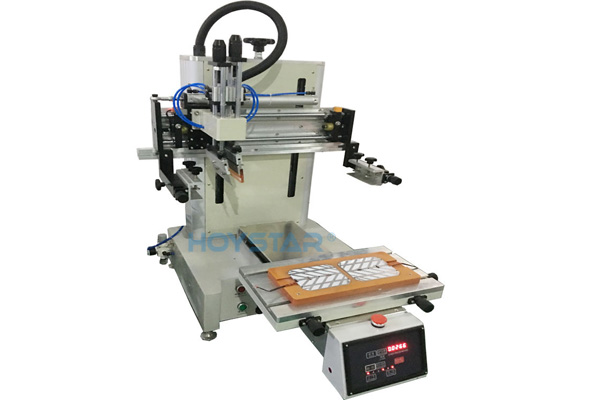

Screen Pringting Machine with sliding worktable(GW-2030PT)

  • Model number:GW-2030PT
  • Printing area:200*200MM
  • Printing speed:1200pcs/Hr
  • Machine size:700*750*850mm
  • Gross weight:70kg
  • MOQ:1set
  • Payment terms:T/T,Western Union,Paypal
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays
  • Worktable size:250*400mm

Application:

It is widely  used to print different material flat items such as pp/pe/pc/pvc/ps/nylon film,EL panel,textile/paper/leather bag,desktop computer keyboard,CE/DVD,ceramic tile,glass,aluminum/metal/arylic sheet,plate,glass.....and so on.

Machine structure:

1.SCM IC complile action program,Auto 4-digit counter built-in
2.Airframe adopts coin alloy,and metal coating surface
3.distyle vertical constructure, high precision, steady operation
4.the transeversa stroke can be adjusted, spacing by Taiwan electronic switch
5.installing scraper constant pressure equipment to make sure pressure is steady when printing
7.the angle of scraper and reclaim blade can be adjusted randomly
8.you can regulate work-table back and forth or right and left, and then fastening it
9.you can regulate screen frame back and forth, right and left or level orientatio
10.Vacuum worktable,can fix products on the table better not easy to move when printing it.
11.installing Taiwan CEC absorbers to removing shaken
12.The machine is running fastly,it is steady and low voice
13.Desktop style,small size and light weight,save space and easy to move.

Technical Parameter:

1.printing area: 200*200mm
2.printing speed: 1000-1200pcs/hr
3.power: 220V or 110V
4.work-table area: 250*400MM
5.max.sreen frame size: 300*500MM
6.max.height of printed products: 100MM
7.Machine net weight:73KG
8.Vertical stroke:160mm
9.transeversa stroke:350mm
10.Machine size:70*75*85cm
