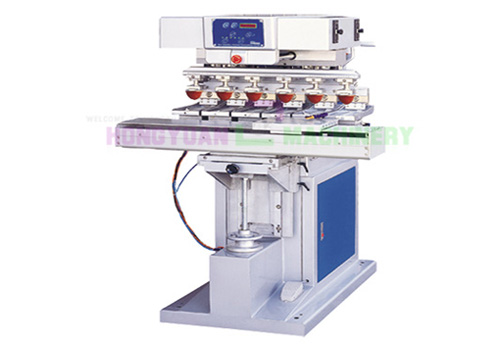

Six Color Pad Printer With Shuttle Worktable(GW-M6S)

  • Model number:GW-M6/S
  • Printing area:80*170mm
  • Printing speed:800PCS/Hr
  • Machine size:1000*960*1500mm
  • Gross weight:280kg
  • MOQ:1set
  • Payment terms:T/T,Paypal,Western Union,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7 workdays

Tampo pad printing machine,open ink tray tampo 6 color pad printing machine

Application:

It is a big sized 6 color pad printer with shuttle with bigger size steel board and long ink tray distance. It can finish 6 color overprint for big pictures, one workstation adjustment,it is convenient to change product and it is running steadily, It is suitable for printing electronic products, plastic shell, hardware products, stationary, small arts and crafts, logo on the surface of gift.

Function:

1. SCM IC complile action program,kinds of printing model option
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable, printing head and ink tray can be adjusted X.Y.Z direction
5. Sucking ink and the pressure of printing pad can be adjusted independently .
6. scrapper stroke can be adjusted
7. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8. The speed of all the cylinders have an independent regulator intortum
9. Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10. Each adjustable location has scale logo
11. printing head is controlled by double air cylinders,enough pressure,and balanced
12. Unique machine body hold-up design,it is convenient to adjust machine and change steel plate.
13. it has the function of forbiding the pad fallen when no air pressure enter into
14.The machine is running fastly,it is steady and low voice
15.installing cold air system
16.stop shuttle work-table, you can use it as a 1 color pad printer with two heads

Technical parameter:

1.Steel plate size:100*200mm

2.Max.printing area:800PCS/Hr

3.Power:220V/110V 50-60MHZ | 30W

4.Air pressure:5-7bar

5.Max.printing area:80*170mm

6.Printing workstation: 1PC

7.Machine dimension:100*960*1500(mm)
8.Machine Weight:280kg
