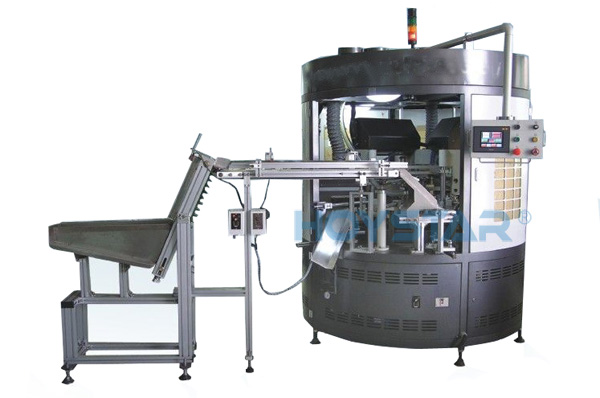

Two-Color Soft Tube Rotating Disc Screen Printing Machine

Application:

Soft tube screen printing machine with 12 stations is the multi function full automatic pritning machine for plastic contrianers,which is developed for special printing of soft ube,caps,cosmetic jars and other cylinder products.Different stations can be equipped with different configurations as per the technical requirements of special products.Two groups of screen printing stations;Two groups of UV curing system.According to customers' requirements,we can make the auto feeder and Arranging system,which can have higher effciency and save more man power to make the machine meet different customer's packing demand for many kinds of technical requirements and be used in more ways.Adopting the divider rotation design,mechanical transmission and computerized control system and easy operation can guarantee the high quality printing effect

Function:

1.Full automatic feeder system
2.With auto flame treatment system
3.Less variable-speed control system
4.Automatric pre-allocation system
5.No printing while no bottle system
6.UV coating system

Technical parameter:

Printing diameter(for round products): 20mm~100mm
Printing height(for round products): 20mm~200mm
Max.printing speed: 3300Pcs/Hour
Control system: PLC And Touch Screen
Power: AC380V 3Phase  50Hz
Machine size:1900*2400*2300mm
Weight: 1800KG
with 16PCS of workstations

Main parts:

1.Main motor of machine,gear box: SITI(Italian brand)
2.Divider: SANKYO (Japanese Brand)
3.Programmable Logic Controller (PLC):OMRON(Japanese brand)
4.Photoelectric Switch: LEUZE( German Brand)
5.Main Control Panel(touch screen): KINCO(shenzhen brand)
6.Button Switch: APT(Shanghai Brand)
7.Contactor: SCHNEIDER(French Brand)
8.Relay: OMRON(Japanese Brand)
9.UV Coating System: HONOVIA(American Brand)
10.Pneuamtic Component:SMC(Japanese Brand)

Printing samples:
