t-shirt ir infrared dryer with conveyor belt(GW-600H)

  • Model number:GW-600H
  • Machine size: 2000*900*1300 mm
  • Gross weight:200KG
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 7days

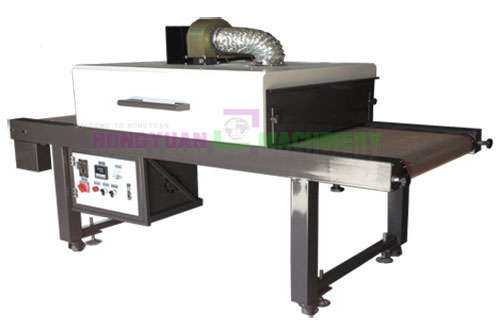

 screen printing infrared dryer

This dryer machine with conveyor belt,it is designed for lab and mass production.This conveyor belt system has quiet varying-speed motor,when the dryer is various loads, speed -adjusting driver and the speed of conveyor are Uniform,the height between belt and lamps can be adjusted,it is suitable for kinds of items which have different size.

It is suitable for printing,painting, hot-setting adhesive, ink jetting,and T-shirt printing etc.

Technical parameter:

Machine size: 2000*900*1300 mm(including fan housing and electric motor)

Drying area : 800*900mm

Belt width:600mm

Max.conveyor width:600 mm

Max.conveyor height:100 mm( it can be adjustable)

Material of belt: Teflon

Speed:1-5m/minutes

Lamp: Infrared lamps

Temperature:200 degree

Lamp wattage: 750w*10pieces(you can choose Heraeus lamps tubes)

Power :220V/380v
