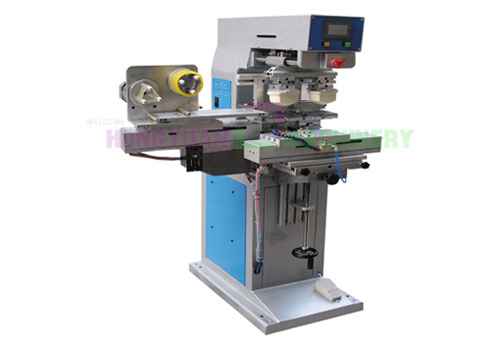

two color pad printer with automatic pad cleaning(GW-M2S-ST)

  • Model number:GW-M2S-ST
  • Printing area:80*130 MM
  • Printing speed:1200 pieces per hour
  • Machine size:1300×900×1520mm
  • Gross weight:185KGS
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 10days

Application:

Big double-color pad printer with shuttle, bigger steel plate and central distance between ink tray , can carry out double-color register for big image,conveniently adjustable,running steady, it is suitable for printing electronic product,plastic shell,hardware product,stationery,logo on the surface of small arts and crafts and so on.

Function:

1.Touch screen controls

2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10.Each adjustable location has scale logo
11.Unique machine body hold-up design,conveniently adjust machine and change steel plate
12.when there is no pressure air into ,it has prohibition of plastic head Down  function
13..The machine is running fastly,it is steady and low voice
14.it can be instead of single color double-head pad printer when shuttle table is not running
15.with automatic head cleaning system.

Technical parameter:

1.Steel plate size:100*200mm

2.Print size:80*130mm

3.Max.printing speed:1000-1200PCS/Hr

4.Power:220V or 110V

5.Printing workstation: 1PC

7.Package dimension(LXWXH): 1300×900×1520mm

8.Gross weight:155KG
