Semi Automatic Screen printing machine for Cylinder Head Gaskets

Date: 2021-12-04 Clicked: 373

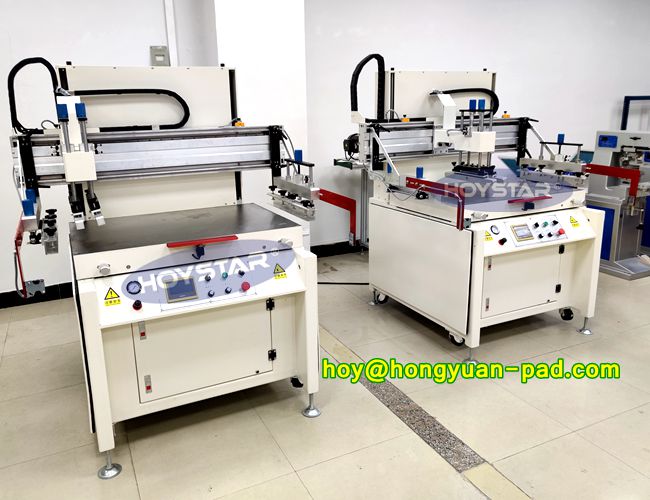

Semi Automatic Screen printing machine for Cylinder Head Gaskets

this flatbed screen printer is suitable for printing kinds of flatbed material, such as cylinder head gasket, pet film, plastic sheet, pvc sheet, aluminum plate, metal plate, stainless steel sheet, glass, PCB board, paper sheet, sticker, heat transfer film....and so on

Below technical parameter and sample photo for reference, if have interested in, welcome to inquiry us at

E-mail: [email protected] Mobile/WhatsApp: +8615016845286

Semi Automatic Screen Printing Machine, Screen Printing Machine for Cylinder Head Gasket, Cylinder Gasket Printing Machine,Cylinder head gasket screen printing machine

Max.printing area	600*800mm
Max.worktable area	700*900mm
max.screen frame size	900*1200mm
Max.printing thickness	30mm
Printing speed max.	900pcs per hour
Air pressure	5-7 Bar
Position accuracy	0.05mm
Voltage/Power	380V 3 phase 3.7KW
Dimension	170012001750mm
Package dimension	175012501950mm
Gross weight	700kg
