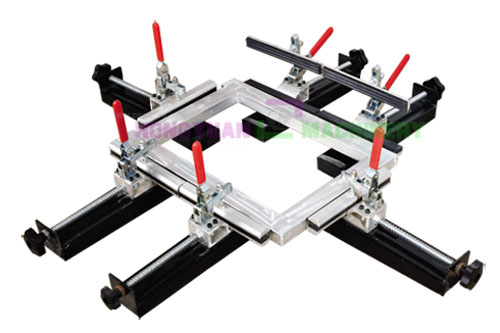

Manual silk screen mesh stretching machine

Application:

Screen stretching is the most important procedure to make screen. Stretching tool and technical define the quality of emulsion coating ,screen stretching and screen printing.
Our company produce this manual screen stretcher, it is professional design, exquisite craft, brief and utility structure, easy and swift operation ,enormously improves efficiency and quality.

Features:

1.SConsisted by four 24"(60CM) wide collets. One single set can apply to any screen frames below 24"x24"(60x60CM )(external dimension), two sets combination can be done all size screen frames below 48"x48"(120x120CM)
2.Wide locking bars for compressing screen are critical parts, directly influencing the quality of stretching. We specially exploit concave and convex locking bars made of rubber with proper rigidity,24" width,no joints
3.Suits for any frames below 2” thickness (commen thickness is 1"-1.2").Adjusting position bolt can meet your different requirement
4.Considering machine structure, only some components needs to endure force, we bring in 0.12" thickness steel plate to make normal components and 0.2" thickness plate to make forced parts.Made of steel,advanced electrostatic spraying

Technical parameter:

1.Max.screen frame:24"*24"
2.machine:68×46×26cm
3.Gross weight:24kg
