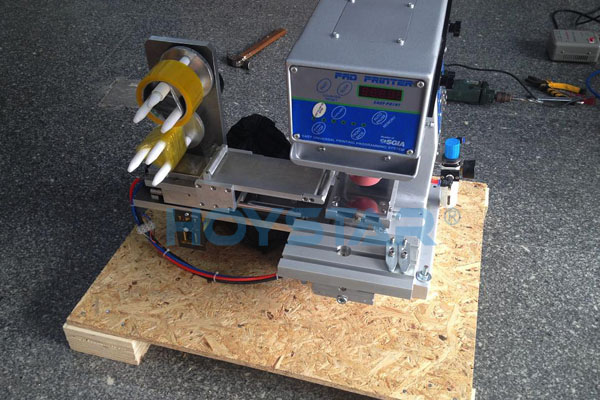

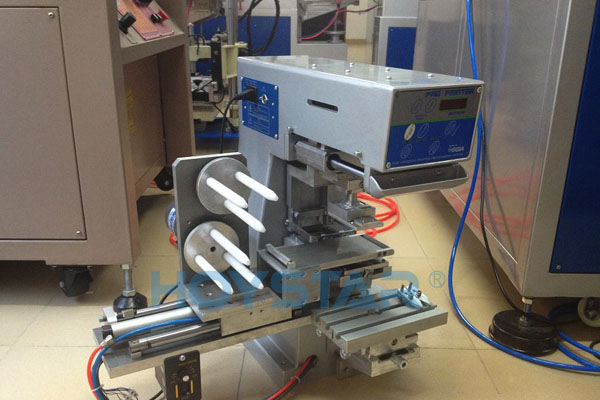

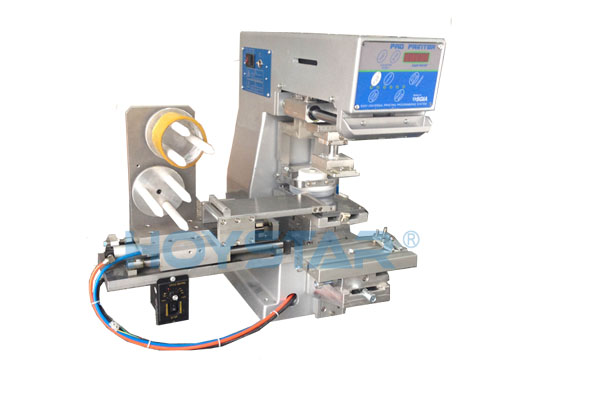

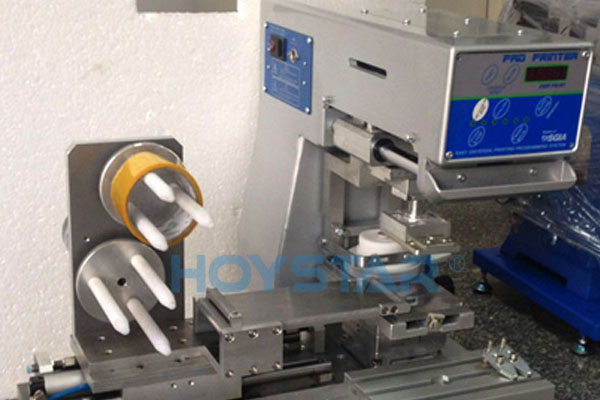

Sealed ink cup pad printing machine for logo printing with bottle,box,mug,mouse

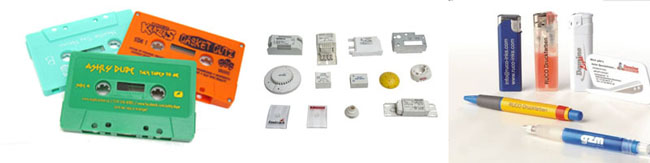

Printing Samples:

Application:

This pad printing machine with closed ink cup is for printing plastic,hardware,electronics,toys, cosmetic package, electric,gift and premiums,bottle cap,stationary,ceramic pad printing,advertisement and so on,it is with automatic cleaning system,like this,it can save time.

Function:

1.Microprocessor controled,programmable control panel,user can adjust    opreation process Flexible

2. S.M.L machines have its nose up equipment,the machine head can adjusted and convenient to replace ink,steel plate and parts

3.The tray and printing head can be replaced to multicolor ,improve the  flexibility of machine

4.Each ink cup independent base can be adjusted X.Y direction,easy to do color registration ,improve produce efficiency
5.Conveyor is added hot air dryer,speed up the drying rate of ink,improve the efficiency of printing
6.characteristic
Open ink cup design ,easy to add ink or other impregnant
simple ink cup structure ,easy to clean
Unique ink cup structure ,easy to clean.
7.Good quality Japan and european Pneumatic parts

8.Famous axletree with good quality,resistance to abrasion ,long life

9.Machine can be installed with safty guard and emergency stop to be international  standard

10.with automatic cleaning system,save time largely

Technical parameter:

Steel plate size:100*215 mm

Closed ink cup diameter: 90 mm

Print size: 90*90mm

Printng speed:1800PCS/HR

Power:220V   50-60MHZ

Air pressure:5-7 BAR

Machine size:65*55*55 mm

Weight:50kgs

printing station1PC
