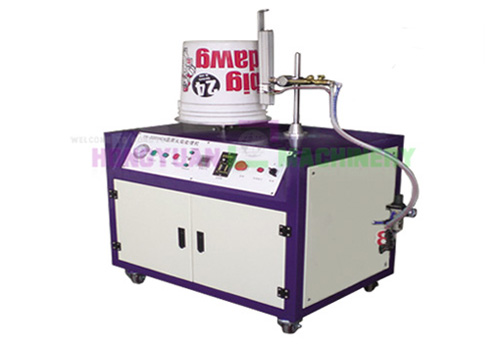

Big container flame surface treatment machine for HDPE,PP

Application:

this kind machine is used for curing surface of  kinds of big containers and round PE,,PVC or PP plastic product.the printing ink will be more firmly attached to the printing items after the machine curing.

 Feature:

1 .this machine is installed specially with fixed round workstation conveyor,the size can be adjustable,and workpiece is easily loaded or unloaded from the machine

2.the conveyor part adopts imported micro-motor,you can adjust the speed using stepless speed method to meet the different requirement of different workpieces

3.Advanced file-breathing head and junction station design is unique,high fuel efficency,energy-saving product

4 .Whole machine structure is novel,reasonable design,easy to operate,with movable casters,easy to move.

 Technical Parameter:

Flame wide:300MM

Combustion gases: standard liquefied petroleum gas

Combustion -supporting gases: compressed air 8kgf/CM2

Power:220V or 110V

Conveyor belt speed:0-10m/min

Weight: 80KG
