Full Auto Balloon Screen Printing Machine(GW-QQJ-AT-1C)

  • Model number:GW-QQJ-AT-1C
  • Printing area:120*110 mm
  • Printing speed:2000 pieces per hour
  • Machine size:7.5(L)*1.2(W)*1.7(H) m
  • Gross weight:1900 kg
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea
  • Lead time:within 30 workdays
Application:
The balloon printing production line, including frame, conveying device installed on the frame and many sets of printing device, balloon clip and discharge device, the balloon positioning device.blow device and CNC system.
conveying device install many balloon clip and discharge device with positioning.balloon clip and discharge device and balloon positioning seting are one-to-one  .
Balloon printing machine in the process of the balloon printing by transmission device into a production line, so that greatly improve the efficiency of the printing.the balloon will fix position by balloon positioning device,like that balloon will not move when machine printing balloon, logo distinct,which avoid  logo overlap and shifting,thus improve printing quality.
Technical parameter:
printing color:1 color
mainframe power:1.5 kw
air pressure:0.8MPa
frame size:645*220 mm
dimension:7.5(L)*1.2(W)*1.7(H) m
net weight:1500 kg
print size:120*110 mm

capacity:2000 pieces/hour

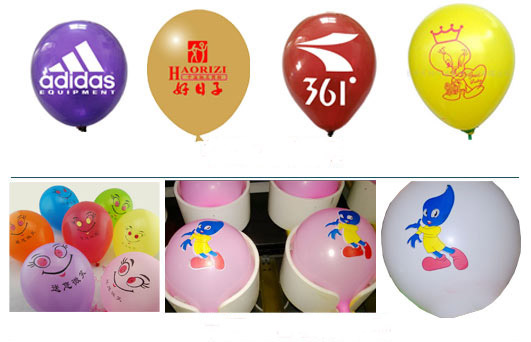

Printing Sample
