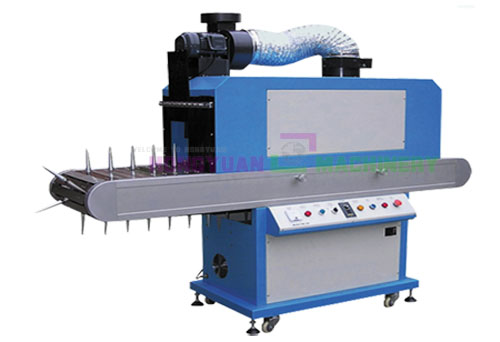

Curved and flat product UV curing machine for screen printing

Application:

The curved and flat product UV curing machine for screen printing is special designed for curing plastic container, the main object is flat products. The machine adopt high wattage Mercury Vapor Lamp, three grade option for outputing wattage with no endless high speed motor. It's suitable for kinds of products. Adjustable exhausting system can make the best operation temperature of lamp, too much heat system of lamp and transformer can make operate the machine safely.

Technical parameter:

1.UV Lamps: 3 KW *1piece

2.Bottle mouse diameter:12-24mm
3.Height of treated product: 25mm-300mm
4.The width of belt: 400MM
5.The length of belt: 190MM
6.Demension: 2000*700*1800mm
7.The max speed: 2500CS/hour

8.Power :380V 50Hz
