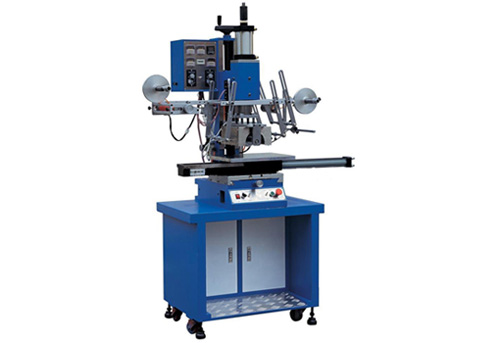

Heat Transfer Printing Machine For plastic board/plastic bottle

Application:

 1.it is suitable for pirnting on the surface of mini flat ,round and single side
2.can print on different material,such as,branding for rubber,plsstics,leather,wood,etc,so achieve good hot stamoing results
3.can match with different strong and big or small printing pad,which the pattern print the product.
4.with different color printing paper,pattern paper and thermal transfer paper.

 Feature:

1.the machine adopts the FC25 steel, lightweight wear-resistant, by precision grinding action smoothly, correctly and can be operated in low pressure.
2.steel plate, durable, good flatness.
3.hand press type switch, can be absolutely prevent work accident.
4.a large protective type pedal switch, durable and safe.
5.precision fine-tuning, so that the cylinder impression of depth to achieve more accurate control.
6.large adjusting hand wheel, adjustment convenient quick head height.
7.special motor material design, material volume accurately, easy loading and unloading.
8.volumes of material can be controlled, easy adjustment, precise and accurate.

 Technical parameter:

max.hot printing size:150*200mm
air press power: 220V/50HZ 2KW
power:5-7bar

stamping speed:600-900pcs/hr

Out dimension:1000*600*1400mm
