Application:

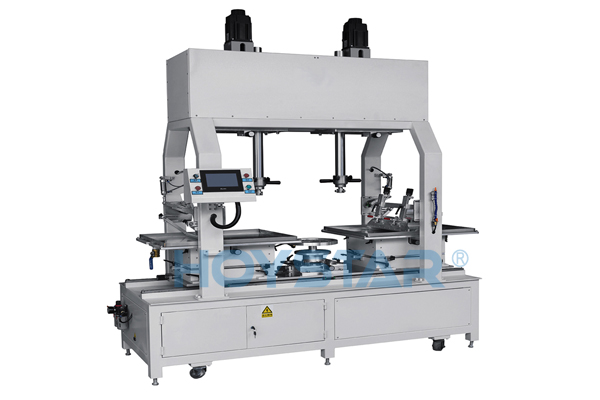

This machine most suitable for printing all kinds of shape ceramic plates bowls, metal pans ,pots ,fry pans ,trays with high printing quality,max printing area can reach 300*300mm, Very powerful machine. it can be printed inside ,outside ,edge and oddly shape.

Function:

1.PLC control and servo motor, make it more stable performance, easier operation, lower noise, pressure uniformity, easier maintenance.
2.Quick print, no matter how complex patterns (2 colors for example), at least can print 800 pcs in one hour, if  works 8 hours a day, every day at least can print 6400 pcs, equivalent to 8 staff work about 8-10 days. Thereby, labor cost is saved and work efficiency is improved.
3.The print pattern is clear and accurate, and the repetition error is ± 0.3mm.
4.Apply to smooth or rough surface products, all over the broader scope.
5.Cost lower than screen printing, hand painted and decal for ceramic production (including paint, oil seal).
6.suitable for wide area printing and applicable within the range of 50mm-350mm.

Technical Parameter:

Max.steel plate size: 400*400mm

Product size: Φ 300mm

Product thickness: 0-200mm

Max.printing speed:800PCS/Hr

Voltage: 220V

Air presure: 0.5-0.7 Mpa/cm2

Machine size: 2120*1010*2250mm

Pakcage size: 2200*1090*2400mm

Machine weight:650kgs

Package weight: 800kgs

Printing colors: 2 colors
