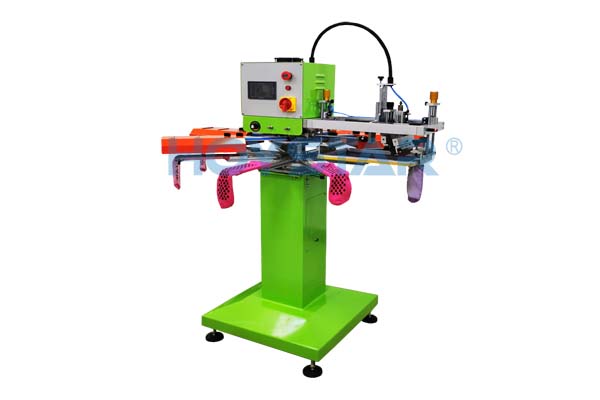

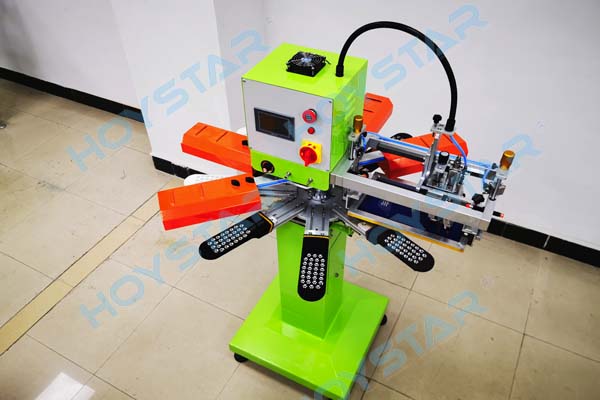

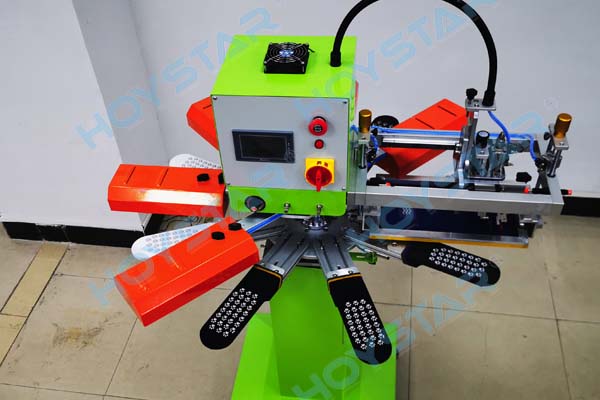

Anti-slip Socks Printing Machine(GW-100TRS-F8)

  • Model number:GW-100TRS-F8
  • Printing area:130*100mm
  • Printing speed:1200PCS/Hr
  • Machine size:1000*920*1450mm
  • Gross weight:160kgs
  • MOQ:1set
  • Payment terms:T/T or Paypal or Western Union or L/C
  • Package way:plywood box
  • Delivery way:By ocean or by air
  • Lead time:within 15 workdays

Application:

high rapid sock screen printer in textile knitting industry,the speed can be up to 1200PCS/Hr,it is suitable for printing garment tagless,sock or label,rotary wortable,very convenient to load or unload products,lots of customers like it very much because of high quality and low price

Function:

1.PLC controlled,user friendly interface,clear function display and easy operation

2.Flat screen printing with infrared drying system.Suitable for different types of ink and small area screen frame printing such as T-shirt collar

3.Five station driven by step motor to insure stable and smooth running

4.Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure

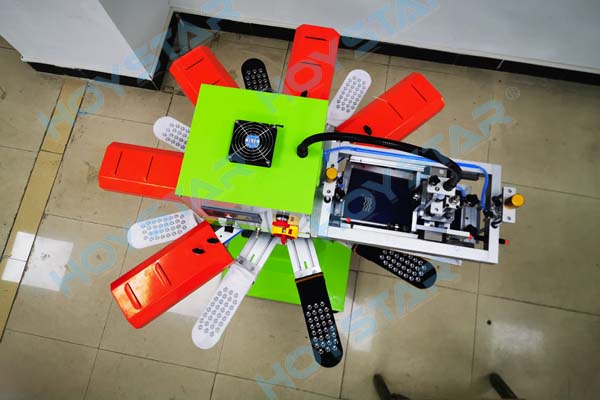

5.Adopts 8 stations rotary worktable,one for substrate loading and one for printing,4 workstation for drying and one for substrate unloading and five stations working simultaneously

6.With one cycle and auto function and switch easy

Technical parameter:

1.Max.printing area:130*100mm

2.Printing speed: 1000-1200PCS/Hr

3.Power:3.6KW,12 pieces ir lamp

4.Machine size:1000*920*1450mm

5.Weight: 120kgs

6.Workstaion: 8 pieces

7.Drying system: 4 set
