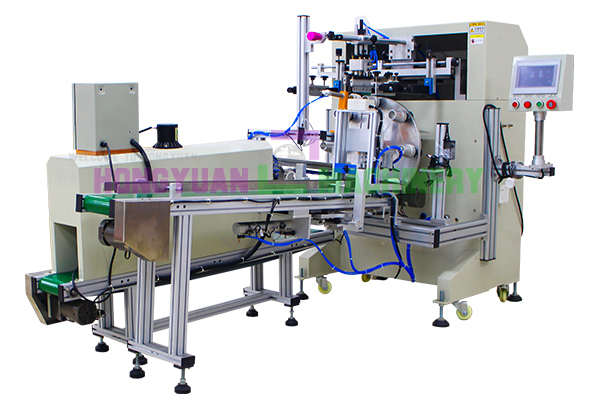

Milk Tea Cup /Disposable Cup Screen Printing Machine

  • Model number:GW-2A-A
  • Printing speed:1200PCS/Hr
  • Machine size:1800*1600*1500mm
  • Gross weight:350kgs
  • MOQ:1set
  • Payment terms:T/T or Western Union,or Paypal
  • Package way:plywood box
  • Delivery way:by Ocean or By air
  • Lead time:within 30 workdays after your order confirmation
Products Description

Application:

This kind screen printing machine is specially designed for printing the Disposable Cup, it is full automatic machine, auto loading---auto printing-----auto unloading---IR drying

Technical parameter:
Max printing diameter
100mm
Max length of products
200mm
Power
220V 50-60MHZ/200W
Air pressure
5-7bar
Loading mode
Automatic
Unloading mode
Automatic
Drive mode of rotary table
Electric
Transeversa driving style
Pneumatic

Feature:

1. Fully automatic, no need person to operate 2. Locating automatically to keep printing precision 3. No product without printing system, keep printing stable 4. High and strong vacuum system, keep printing precision 5. PLC and touching screen control system. Digital control system,can set parameter randomly,operate easily with big function 6. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even 7. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly 8. With emergency switch to keep safe and stable 9. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency 10.The loading system is rotary type. like this,it can save time
Details Images

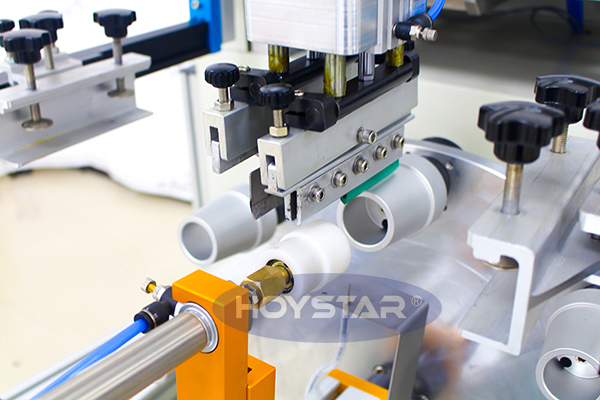

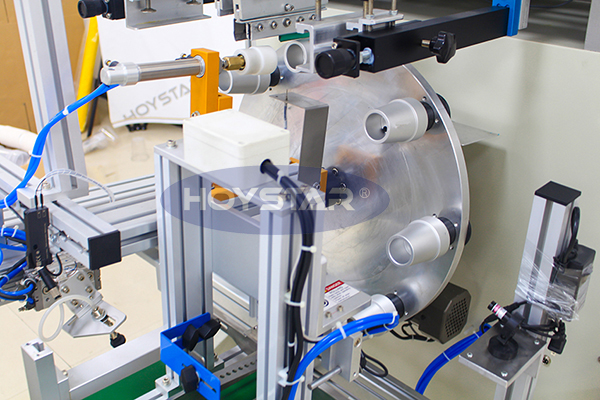

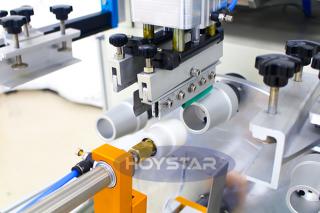

Automatic loading system, different size of cup need different fixture

Plastic cup print

Paper cup print

Automatic unloading system

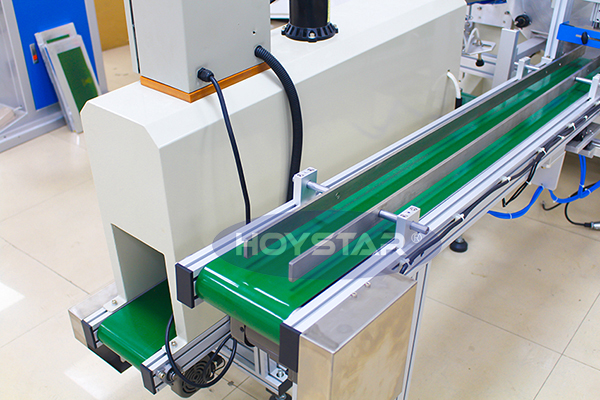

IR drying system

Samples
