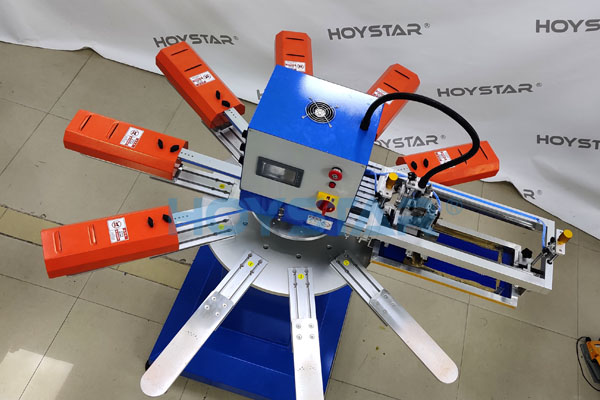

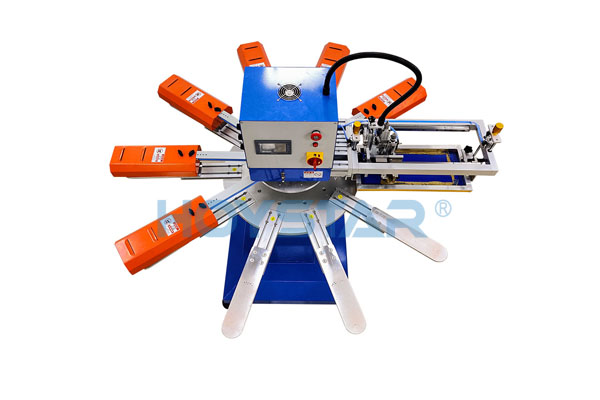

Anti slip automatic rotary socks / gloves silicon printing machine

Application:

high rapid sock screen printer in textile knitting industry,the speed can be up to 900PCS/Hr,it is suitable for printing garment tagless,sock or label,rotary wortable,very convenient to load or unload products,lots of customers like it very much because of high quality and low price

Function:

1.PLC controlled,user friendly interface,clear function display and easy operation

2.Flat screen printing with infrared drying system.Suitable for different types of ink and small area screen frame printing such as T-shirt collar

3.Five station driven by step motor to insure stable and smooth running

4.Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure

5.Adopts 8 stations rotary worktable,one for substrate loading and one for printing,4 workstation for drying and one for substrate unloading and five stations working simultaneously

6.With one cycle and auto function and switch easy

Technical parameter:

1.Max.printing area:100*250mm

2.Printing speed: 900PCS/Hr

3.Power:6KW,300W/PC

4.Machine size:1.65*1.35*1.6m

5.Weight: 120kgs

6.Workstaion: 10 pieces

7.Drying system:6 sets

8.Power: 380V

9.Package weight: 260kgs

Application:

High rapid sock screen printer in textile knitting industry,the speed can be up to 900pcs/Hr,it is suitable for printing
socks,gloves,garment,tagless,or label,rotary workable,very convenient to load or unload products,lots of customers like it very much because of high quality and low price.

Function:

1) PLC controlled,user friendly interface,clear function display and easy operation.
2) Flat screen printing with infrared drying system.Suitable for different types of ink and small area screen frame printing such as socks,gloves,tagless, T-shirt collar,bags.
3) Ten station driven by step motor to insure stable and smooth running.
4) Angle and height of squeegee and flood blade can be adjusted to insure consistent printing pressure.
5) Adopts 10 stations rotary worktable,one for substrate loading and one for printing,6 workstation for drying and one for substrate unloading and five stations working simultaneously.
6) With one cycle and auto function and switch easy.

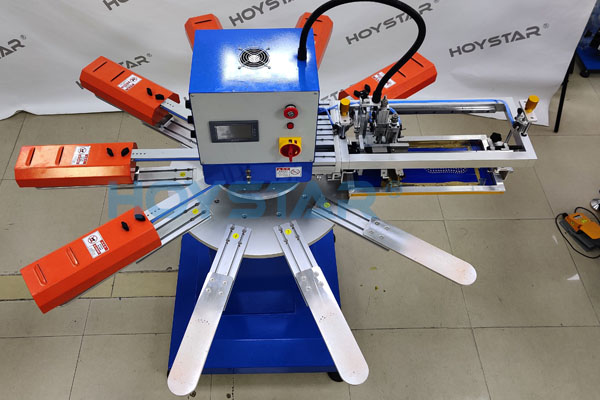

PLC+Touch screen panel（Clear interface,the operation is simple and convenience）

The machine come equipped with 6 set IR drying system

------It can better dry larger area of silica gel printing

Every two drying systems can be adjusted separately

------If you only want to use 4 sets of drying system, you can turn off light No. 3

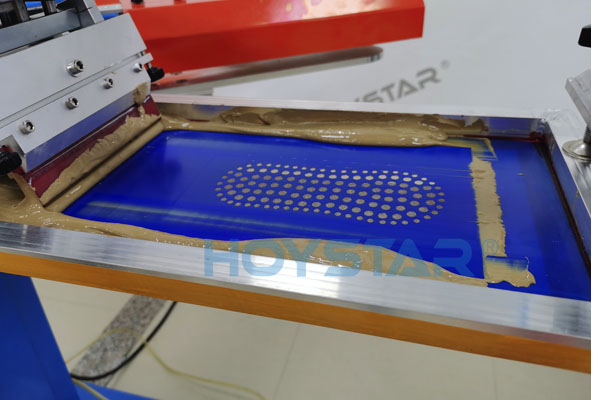

When you have ink+screen frame with pattern,you can start printing now !

------We can make the screen frame with logo/pattern for you,you can send us the design drawings .

------or We also have some drawings for your reference if you needed.)
