Application:

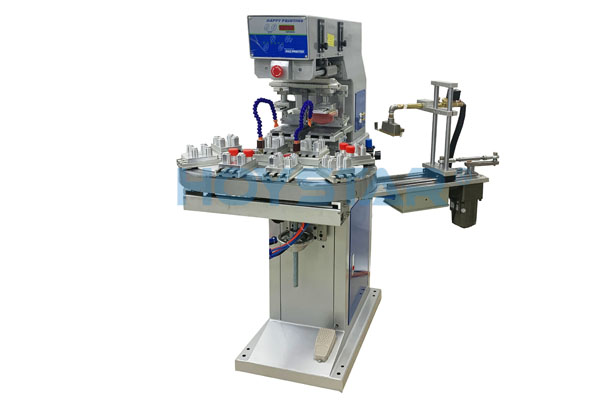

this pad printer is with conveyor worktable,products can be double-color pad printing continuously,one circle can complete one color register ,compare with pad printer with shuttle ,the speed is very fast .bigger steel  plate can carry out double -color register for big image ,high speed ,running steady ,it is suitable for printing electronic product plastic shell, hardware product ,stationery,logo on the surface of small arts and crafts and so on .

 Advantage of pad printer :

1.SMC IC compile action program ,kinds of printing model options .

2.Auto  4-digit counter built -in ,and stat ,printing quantity .

3.Airframe adopts coin alloy ,and metal coating surface.

4.Worktable ,plastic head and ink tray can be adjusted  X, Y, Z direction.

5.Sucking ink and the pressure of printing pad can be adjusted independently.

6.The distance of scratching ink is adjustable .

7.It has function of leveling ink by sliding automatically on front /back ,this can avoid printing ink partial solidification.

8.The speed of all the cylinders have an independment regulator intortum.

9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component .

10.Each adjustable lacation has scale logo.

11.when there is no pressure air into ,it has prohibition of plastic head Down functio .

12.The machine is running fastly ,it is steady and low voice .

13.it has automatic cold wind system .

14.with flame treatment system

 Technical parameter:

Steel plate:100*200mm

Printing speed :1200times/Hr( for the caps which diameter:28mm,it can print 4PCS at one time)

Power :220V     50-60MHZ/1000W

Air pressure:5-7bar

Max print area:80*130mm

Printing workstation :8pcs

Printing color :2colors

Machine size:1200*960*1500mm

Net weight: 225KG
