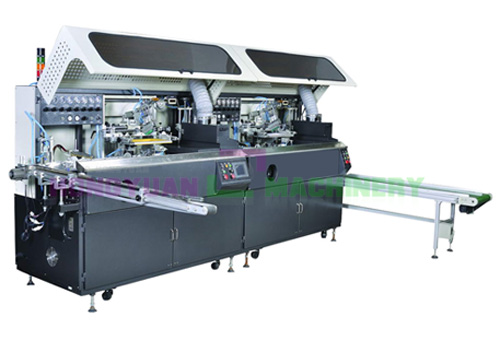

Cylinder Paper Cup/mug/bottle Silk Screen Printing Machine

The full automatic two color curved screen printer is widely applicable to high-precision  pictures & words printing on the container surface in   cosmetic, medicine, food, electric appliance, toy, cabinet and  many other fields. The demand of Arc surface printing ,such as cylindrical, elliptic cylindrical and other heterotype   containers,could always be meet,and the machine is compatible   for plastic bottle,glass bottle,metal materials. The electric control system consists of PLC and advanced touch screen as to intelligent   operation for the whole machine .The new transmission system consisted of advanced imported  motor,speed converter device and pneumatic component which has   the function of electrodeless variable-speed,synchronous   transmission ,auto allocation and no-workpiece-no –printing.
The machine is with flame treatment system , can treatment surface of round product.automatic drying after printing.

Application

Full-automatic Screen Printing Machine is used for printing various patterns on the surface of cylindrical or oval container, mug, cup,bottle, PP,PE,PVC.PC plastic bottle, the printing materials may be used by plastics and glass and ceramics and metals etc.

Technical parameter

⊕ Round printing diameter:20 mm~108 mm
  ⊕ Round printing height:20 mm~280 mm
  ⊕ Oval printing diameter:R20 mm~R180 mm
  ⊕ Oval printing height:20mm~280mm
  ⊕ Max printing speed:3600Pcs/Hour
  ⊕ Power supply:AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz
  ⊕ Rated power:15KW
  ⊕ Air pressure:5~8bar
  ⊕ Machine dimension:(L2000mm*W1200mm*H1750mm)*2 pcs
  ⊕ Machine weight:2000kgs

Machine main motor:MOTOVARIO
 ⊕ PLC:OMRON
 ⊕ Photoeletric switch:OMRON
 ⊕ Touch screen:KINCO
 ⊕ Button switch:APT
 ⊕ Contactor:SCHNEIDER
 ⊕ Relay: OMRON
 ⊕ Frequency converter: PANASONIC
 ⊕ UV coating system:HONOVIA
 ⊕ Pneumatic components:SMC/AIRTAC
