PCB , Circuit Board  Flat Bed Screen Printing Machine

Application:

It is suitable for printing different material flat items such as textile,paper/leather bag,circuit/pcb plate, glass aluminum/metal/arylic board,PP/PVC/PET/PC/PE film,ceramic tile,traffic/road sign...and so on.

Technical Parameter:

1.Max.printing area:600*800mm

2.Max.printing speed:900PCS/Hr

3.Power:380V/ 3.7kw
4.Air pressure:5-7bar
5.Worktable size:700*1000mm
6.Max.sreen frame size: 900*1200MM
7.Max.workpiece height: 0-20mm
8.Number of Color: single color

Feature:

1. Controlling machine by PLC programming controller
2. Auto 4-digit counter built-in,all of machine conver both produce by metal material,high quality.
3. Vertical adopting distyle constructure,screen frame up/down and printing head left and right both control by high precision electrical servo motor drived independently.
4. Controlling printing blade up and down by transducer system,controlling stroke by photocell eye.
6. You can be free to choose printing cycle according to your printing craftwork by printing action.
7. Manula/semi auto/full auto 3 settings up.When printing is indirect,it will be controlled by digital.
8. Machine with vacuum worktable,it can fix the product better and printing quality precision when printing it.
9. Unique designed machine head up and down equipment,it is convenient to clean scraper,blade,screen frame.
10.Double guide pole controlling screen arm,installing the device for adjusting screen distance,regulated conveniently
11.Installing scramming device on work-table, it accord with safty standard.

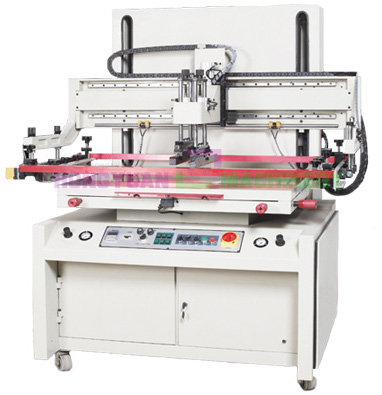

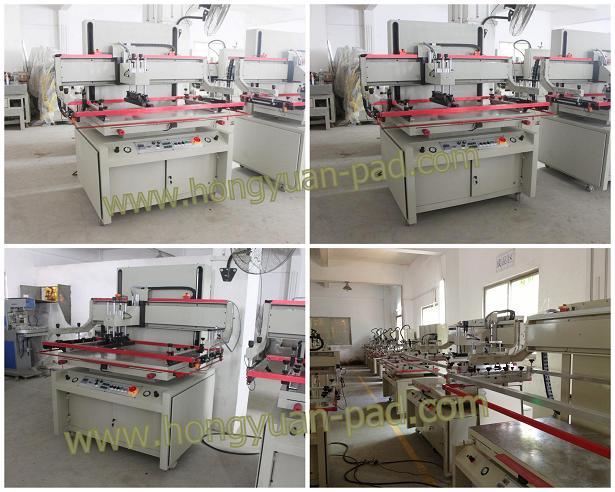

Machine pictures:
