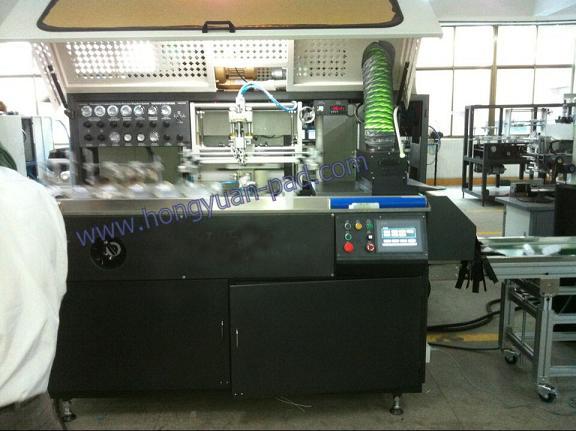

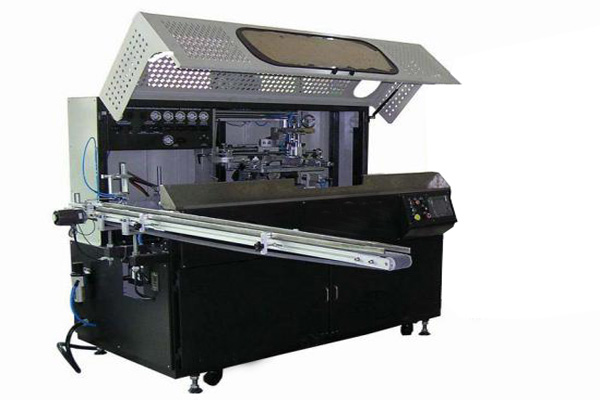

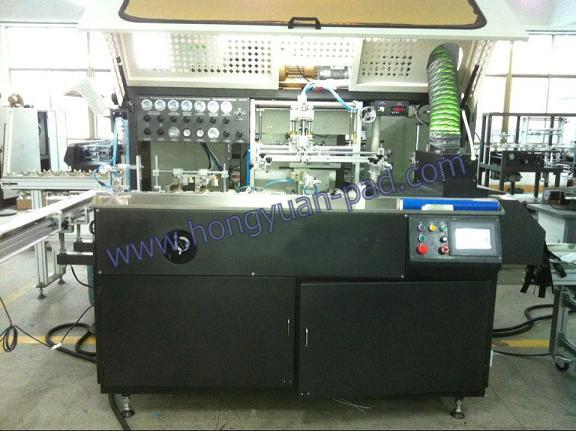

Full Automatic Cylindrical Screen Printing Machine For Plastic Water Bottles

Application:

It is suitable for printing glass/plastic bottles/tube,such as cosmetic glass bottles,plastic water bottles,nail glass bottles,plastic tube....etc

Main function:

 ⊕ Auto feeder
 ⊕ Automatic loading direction-selectionsystem
 ⊕ Auto flame treatment for container surface
 ⊕ Electrodeless variable-speed motor syst
 ⊕ Adjustable mechanical synchronous transfer system
 ⊕ Auto pre-allocation system
 ⊕ No printing while no bottle system
 ⊕ UV-coating system

Technical Parameter:

⊕ Round printing diameter:25mm~100mm
  ⊕ Round printing height:60mm~280mm
  ⊕ Oval printing diameter:R35mm~R180mm
  ⊕ Oval printing height:60mm~280mm
  ⊕ Max printing speed:3600Pcs/Hour
  ⊕ Power supply:AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz
  ⊕ Rated power: 7KW 20A
  ⊕ Air pressure:5~8bar
  ⊕ Machine dimension:(L2000mm*W1200mm*H1750mm)
  ⊕ Machine weight:1600kg

Printing samples:
