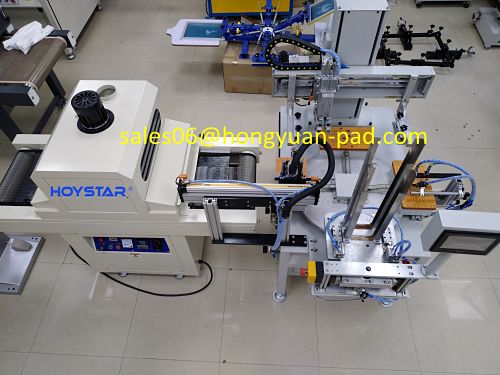

Ruler Printer Machine With Our UV Conveyor

Ruler Printer Machine With Our UV Conveyor

The machine is special designed for printing stationery ruler with high speed and automatic. Building up printing and conveying system by high precision servo motor and cam divider to finish printing automatically, reduce labor, improving efficiency. The printing speed can be up to 2500pcs/hr

Rulers of up to 30cm in length can be accommodated. You can print multiple rulers at once with tooling and once printed, have the rulers auto takeoff into the Systematic Automation UV conveyor for curing. Different size and thickness rulers can be accommodated using the same tooling and printer. Cut your labor in half with the Ruler Printer.

Key Features
 1. Fully automatic, no need person to operate
 2. Locating automatically to keep printing precision
 3. No product without printing system, keep printing stable
 4. High and strong vacuum system, keep printing precision
 5. UV dryer or high temperatu
 6. PLC and touching screen control system. Digital control system,can set parameter randomly, operate easily with big function
 7. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even
 8. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly
 9. With emergency switch to keep safe and stable
 10. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving  efficiency

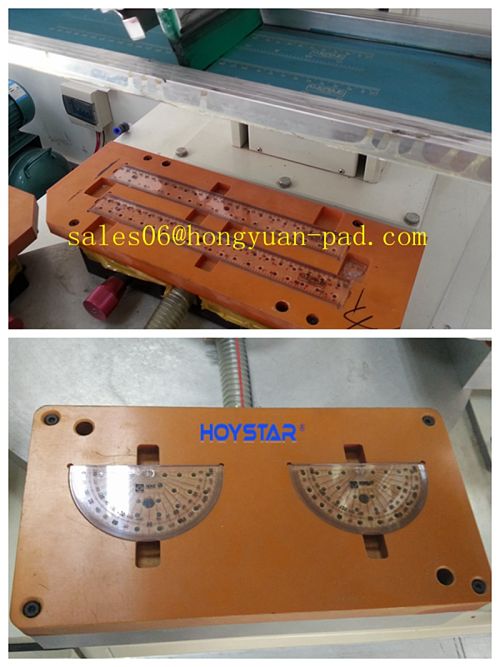

Screen printing machine for different ruler

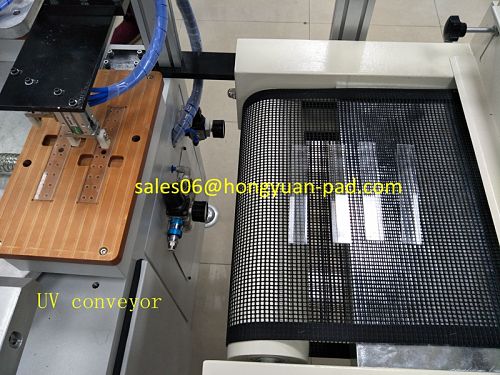

UV conveyor
