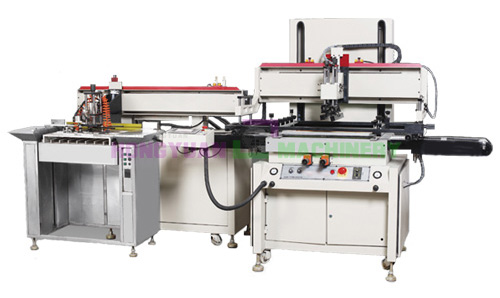

Automatic Flat Screen Printing Machine(GW-5070AT)

  • Model number:GW-5070AT
  • Printing area:500*700mm
  • Printing speed:800pcs/hour
  • MOQ:1 Set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:by wooden box
  • Delivery way:by sea or by air
  • Lead time:Within 3-7workdays after get client's deposit
  • Worktable size:600*850mm

Automatic Vacuum Flat Bed PCB/PVC Circuit Board Screen Printer

Application:

It is suitable for printing kinds of materials flat surface items such as aluminum sheet,metal board,PCB circuit board,CD/DVD,glass sheet,wooden board,arylic....etc


Structures:

1.PLC program controller and touch screen panel control
2.Machine up/down,left/right movement adopts variable frequency electric motor driving.It adopts linear guide.
3.Automatic robot loading system,with controlled by high precision servo.save labour,high speed.
4.Vacuum table can fix the products better when printing it.
6.It can connect with infrared tunnel drying machine used to dry products after printed it.

7.Auto 4-digit counter built-in,Airframe adopts coin alloy with metal coating surface,strong.

8.distyle vertical constructure, high precision, steady operation

9.installing scraper constant pressure equipment to make sure pressure is steady when printing

10.Installing scramming device on up of worktable in order to avoid injuring hands and make operate safety

11.Machine installed Taiwan CEC absorbers to removing shaken,make machine working steady.

12.printing head can be liftuped, that is convenient to pick-and-place sreen frame

13.adopting Germany ORIGA roldless cylinder to drive transversa moving, TaiWai Ruike electronic switch to drive transversa stroke


Technical Parameter:

1.Max.printing area:500*700mm
2.Max table size:600*850mm
3.Max screen frame size:750*1000mm
4.Max printing single workpiece thickness:0-20mm
5.Max printing speed:1000pcs/h
6.Air compression:0.4-0.6MPA
7.Power:380V,it can according customer's requirement to produce.
8.Position accuracy:0.05mm
