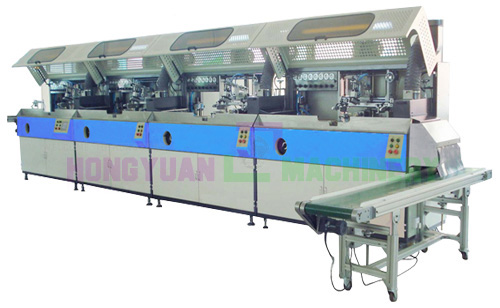

Full Automatic 4 Color Cylindrical Screen Printing Machine For Bottle

  • Model number:GW-4A-UV
  • Printing area:108 mm diameter
  • Printing speed:3600 pieces per hour
  • Machine size:(L2000mm*W1200mm*H1750mm)*4 sets
  • Gross weight:4000kgs
  • MOQ:1 set
  • Payment terms:T/T,Western Union,Paypal,L/C
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 30days

Automatic 4 color  cylindrical screen printing machine for plastic cup


the full automatic 4 color curve screen printing  machine is widely applicable to high-precision  pictures & words printing on the container surface in   cosmetic, medicine, food, electric appliance, toy, cabinet and  many other fields. The demand of Arc surface printing ,such as cylindrical, elliptic cylindrical and other heterotype   containers,could always be meet,and the machine is compatible   for plastic,glass,metal materials. The electric control system consists of PLC and advanced touch screen as to intelligent   operation for the whole machine .The new transmission system consisted of advanced imported  motor,speed converter device and pneumatic component which has  the function of electrodeless variable-speed,synchronous   transmission ,auto allocation and no-workpiece-no –printing.

 Main function of this machine:
 ⊕ Auto feeder
 ⊕ Automatic loading direction-selectionsystem
 ⊕ Auto flame treatment for container surface
 ⊕ Electrodeless variable-speed motor syst

 ⊕ Adjustable mechanical synchronous transfer system

 ⊕ Auto pre-allocation system
 ⊕ No printing while no bottle system
 ⊕ UV-coating system

Main parts:

 ⊕ Machine main motor:MOTOVARIO
 ⊕ Photoeletric switch:OMRON
 ⊕ Touch screen:KINCO
 ⊕ Button switch:APT
 ⊕ Contactor:SCHNEIDER
 ⊕ Relay: OMRON
 ⊕ Frequency converter: PANASONIC
 ⊕ UV coating system:HONOVIA
 ⊕ Pneumatic components:SMC/AIRTAC

 technical parameter:

  ⊕ Round printing diameter:20mm~108mm
  ⊕ Round printing height:20mm~280mm
  ⊕ Oval printing diameter:R20mm~R180mm
  ⊕ Oval printing height:20mm~280mm
  ⊕ Max printing speed:3600Pcs/Hour
  ⊕ Power supply:AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz
  ⊕ Rated power:30KW
  ⊕ Air pressure:5~8bar
  ⊕ Machine dimension:(L2000mm*W1200mm*H1750mm)*4 sets
  ⊕ Machine weight:4000kgs
