Flat table sliding screen printing machine for paper bag

Application:

this sliding worktable screen printing machine is suitable for printing some flat items which size is within 300*500mm,such as keyboard,circuit board ,paper,CD disk,plastic box ,ruler etc.

Function:

1. vertical structure,screen frame vertical take-off and landing
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. this machine adopts linear guiding rail
4. SCM controlled circuit
5. The T-slot worktable can be moved front and back,easy to operate .
6. The worktable can be adjusted slightly on X.Y,Z direction
7. There are three kinds of models,such as manual.semi-automatic and full-antomatic
8. printing head can be lifted up, that is convenient to take-out/in the screen frame
9. installing emergency stop button on work-table, avoiding to injury hands
10.The machine is running fastly,it is steady and low voice

Technical parameter:

1.Max.printing area:300*500mm

2.Max.printing speed:1000PCS/Hr

3.Power:220V　50-60MHZ　|　200W
4.Air pressure:5-7bar
5.Worktable size:400*600mm
6.Max.workpiece height:0-40mm
7.Number of Color: single color
8.Worktable: T-slot ,or vacuum wortable(according to cusomter's requirement)
9.Printing head is operated by motor
10.Printing table is sliding

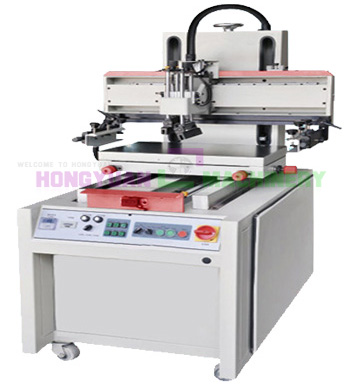

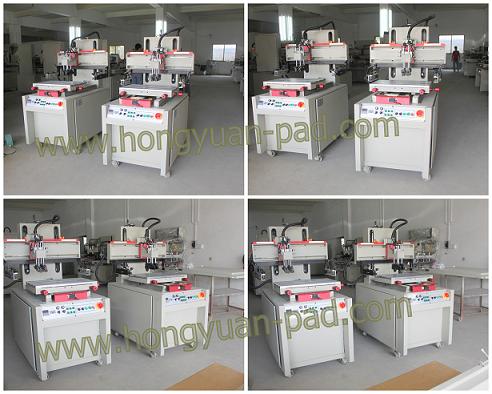

Machine Pictures:
