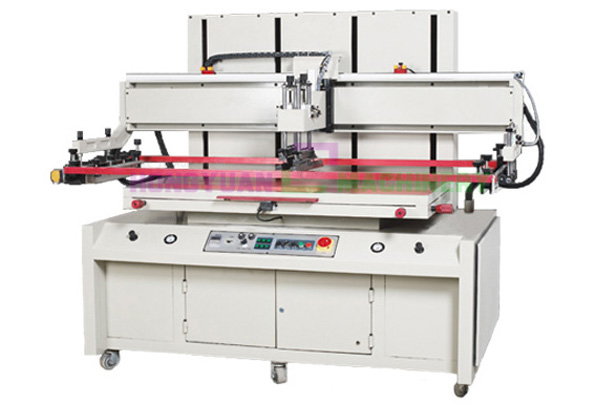

Vacuum Flat Screen Pringting Machine(GW-60120)

  • Model number:GW-60120
  • Printing area:600*1200 MM
  • Printing speed:1000 pieces per hour
  • Machine size:1400*800*1300 MM
  • Gross weight:700KGS
  • MOQ:1 set
  • Payment terms:T/T,western union, paypal
  • Package way:plywood
  • Delivery way:by sea or by air
  • Lead time:within 10days
  • Worktable size:700*1500 MM

Automatic Vacuum Flat Bed Screen Printing Kit

Application:

It is suitable for printing different material flat items such as plastic sheet,paper/textile bag,pvc/pe/pet film,leather bag,metal board,traffic/road sign,aluminum sheet,glass,ceramic tile.and so on.

Function:

1. vertical structure,and screen frame takes Off and Landing vertically,printing distance is left and right sliding

2.up and down,left and right movement adopts variable frequency motor driving

3.it adopts linear guide

4.Printing pressure is controlled by Taiwai cylinder

5.SCM controlled circuit

6.Workatble is vacuum,and low noise

7.Worktable surface adopts high hardness material,air hole is very uniform(we can make it according to customer’s requirement)

8.The worktable can be adjusted slightly on X.Y.Z direction

9.There are three kinds of models,such as manual,semi-auotamtic and full automatic,you can set it according to your needing

10.The printing head can be lift,it is easy to clean

11.Scraper and ink covering blades can be adjusted freely

12.the screen frame holder can be adjustable according to the size of frame

Technical parameter:

1.Max.print area:600*1200mm

2.Max.wortable size:700*1400mm

3.Max.screen frame size:900*1600mm

4.Max.printing thickness:0-20mm

5.Max.printing speed:700PCS/Hr

6.Air sources: 0.6-0.8mpa

7.Machine dimension:2000*1200*1750mm
