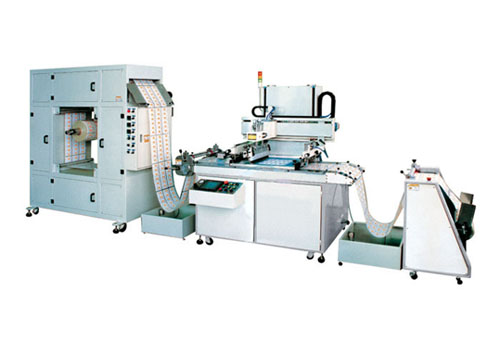

1 Color Roll To Roll Paper,Pvc Screen Printing Machine

Application:

PET,PVC,PC.OBB,PP,laminating paper and other precision roll flat printing .

Feature:

1.Vertical structure ,electromotion ,machine is made up of feeding,traction,printing ,drying and collection.
2. PLC program control,human-machine operation interface,precision alignment controlled by photoelectric eye,automatic detection monitoring function ,machine will shutdown and alarming when it is abnormal.
3.Aluminum parts:printing beam,machine nose,halftone folder
4.Servo motor traction feeding with stable & accurate speed .
5.Inverter motor drive printing knife shelf,quadrate linear precision guide rall,adjust the speed and   stroke independently.
6.Halftone is drived up and down by variable speed gear motor,high precision and move smoothly.
7.The overall grinding high strength and hardness platform with suction hole on it.
8.Sino-foreign joint strength vacuum pump,vacuum strength to ensure the accurate multi-color chromatography.
9.There are three printing models(such as manual model,semi-auto model and full-auto model),It equipped with many kinds of adjusting modes.Printing wime can be controlled by digit(1-9 seconds)
10.Independent halftone clamps device makes it easy to clean,load and unloading screen printing
plate,
ink-return blade and squeegee.
11.It is equipped with screen space regulating device around screen printing plate arm clamps and
 adjust conveniently.
12.The angle of printing & ink return can be adjusted ,with left/right parallel device.
13.IR vertical type oven,hot air circulating,PID adjust controller.
14.Collection is fastening neatly.

Technical parameter:

1.Max.printing area:300*500 mm

2.Max.printing speed:1400 PCS/Hr

3.Power:21kw
4.Air pressure:0.6-0.8 kgf/cm2
5.Worktable size:400*600mm
6.Max.workpiece height:0-1mm.soft material,
7.Number of Color: single color
